Sealing PTFE Envelope Gaskets , Rubber Gasket With Teflon PTFE EPDM

China Sealing PTFE Envelope Gaskets , Rubber Gasket With Teflon PTFE EPDM supplier

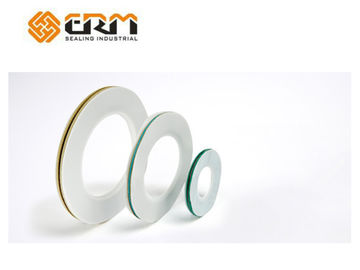

Large Image :  Sealing PTFE Envelope Gaskets , Rubber Gasket With Teflon PTFE EPDM

Product Details:

Place of Origin: CHINA
Brand Name: ERM
Model Number: PTFE Envelope Gaskets

Payment & Shipping Terms:

Minimum Order Quantity: 1000 pcs
Packaging Details: Poly bag
Delivery Time: 20days
Payment Terms: T.T
Supply Ability: 5000pcs/day
Contact Now
Detailed Product Description
Color: White Feature: High Performance
Function: Seal Material: PTFE
Product Name: PTFE Envelope Gaskets Style: O Ring



Sealing PTFE Envelope Gaskets , Rubber Gasket With Teflon PTFE EPDM





Detailed Product Description



PTFE envelope flange gaskets

V-Shape gasket enveloping, U-Shape gasket enveloping, I-Shape gasket enveloping

With Asbestos / Non-asbestos Filler

For petroleum, chemical industry, medicine industry, and food industry

V / U / I Shape Teflon PTFE Envelop Gasket , Sealing Gaskets





Description:



Envelope gaskets utilizing PTFE jacket have become popular for use in severely corrosive services because of their low minimum seating stresses, very good creep resistance, high deformability and choice of a variety of filler materials to assure optimum performance on any specific application. Fillers such as corrugated metal and rubber sheets are available.





Applications:



It is widely used in the field like petroleum, chemical industry, medicine industry, and food industry, we use teflon gasket to make sure the cleanness. And it also used in sealing of strong acid, strong alkali strong oxidizer, chlorine, and other material don't allow pollution.





Specifications:



  • EPDM - durometer A, hardness 65 - 68
  • PTFE -bonded EPDM for maximum corrosion resistance
  • Perfect sealing at low bolt tightening torque ratings; longer gasket life
  • Ideal for plastic piping systems, as well as metal or plastic-lined metal systems





Working temperature:



  • EPDM: - 40 - 195º F
  • PTFE-bonded: - 40 - 250º F
  • Approximately one third bolt tightening torque ratings as compared with flat or envelope type gasket
  • Thickness of bonded materials
  • PTFE: All Sizes: 0.016" (0.4mm)
  • PTFE-bonded gasket excellent for most corrosive chemicals
  • PTFE -bonded gaskets employ a proprietary laminating process for bonding to EPDM, providing the greater elasticity required for lower sealing torques
