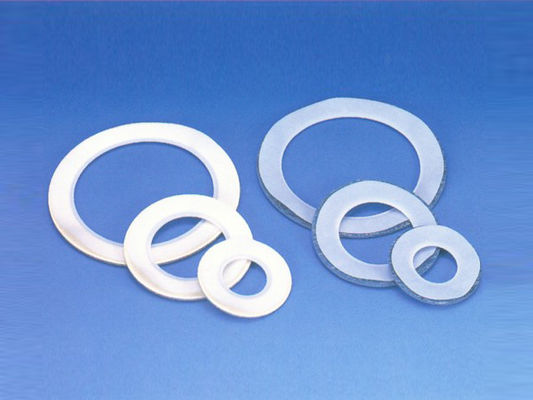

Virgin Expanded PTFE Gasket , Filled PTFE Gasket For Chemical Industry

Virgin Expanded PTFE Gasket , Filled PTFE Gasket For Chemical Industry
Virgin Expanded PTFE Gasket , Filled PTFE Gasket For Chemical Industry

Large Image :  Virgin Expanded PTFE Gasket , Filled PTFE Gasket For Chemical Industry

Product Details:
Place of Origin: China
Brand Name: ERM
Model Number: Expanded PTFE Gasket
Payment & Shipping Terms:
Minimum Order Quantity: 1000 PCS
Packaging Details: Roller paper
Delivery Time: 15 days
Payment Terms: T.T
Supply Ability: 5000pcs/day
Detailed Product Description
Application: Chemical Industry Color: White
Feature: High Performance Function: Seal
Material: PTFE Product Name: Expanded PTFE Gasket
Style: O Ring
High Light:

expanded ptfe gasket

,

high temperature gasket



Virgin Expanded PTFE Gasket , Filled PTFE Gasket For Chemical Industry





Quick Detail:



ERM sealing company is specilized in virgin PTFE gasket and filled PTFE gakset .





Description:



Virgin grade PTFE (Teflon®) gaskets are made from 100% pure material which is used in most general applications. It is extremely soft and formable and is often used for chemical resistant seals and gaskets. It is made directly from the resin producer and has never been processed into a shape. It possesses the highest physical and electrical insulation properties and has increased resistance to creep (compression) under load. Virgin grade PTFE can be recognized by its whiter color compared to mechanical grade PTFE.





Filled PTFE (Teflon®) gaskets are made from PTFE which integrates additives and fillers in order to improve the performance of the gasket. This improves the gaskets ability to wear and enhances its unique combination of chemical, physical and electrical properties. Filled Teflon® is the most common type of PTFE gasket for industrial use as it exhibits improved mechanical strength compared to Virgin PTFE. Glass, carbon and fiber particles are typical fillers that are used to enhance the mechanical strength of the gasket depending on the application.





Specifications:





Material

Max T
(F)

Max P
(psi)

Creep Rel'n
(%)

Applications/Features

Pure PTFE

450

800

35 - 55

Excellent chemical resistance.

Filled PTFE

450

1200

11 - 40

Excellent chemical resistance.

Filled PTFE - Metal Inserted

450

2500

20

Excellent chemical resistance. 316 SS perforated core.

Expanded PTFE

450

3000

30

Excellent chemical resistance. Highly compressible.







Competitive Advantage:





Low friction and minimum power consumption are the decisive advantages offered by PTFE

Gasket.

 These seals can be used without problems also with dry operation or insufficient

lubrication. The materials thermal properties, with an operating range of -130°C to +200°C,

are unrivalled. Moreover, PTFE is featured by high chemical resistance and a low breakaway

torque after standstill.
