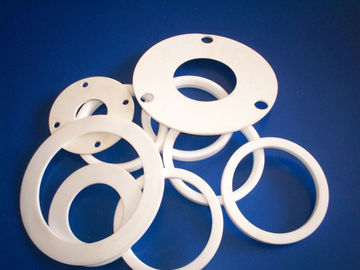

High Performance Expanded PTFE Gasket Seal For Chemical Industry

China High Performance Expanded PTFE Gasket Seal For Chemical Industry supplier

Large Image :  High Performance Expanded PTFE Gasket Seal For Chemical Industry

Product Details:

Place of Origin: CHINA
Brand Name: ERM
Model Number: Expanded PTFE Gasket

Payment & Shipping Terms:

Minimum Order Quantity: 100 pcs
Packaging Details: Poly bag
Delivery Time: 15 days
Payment Terms: T/T
Supply Ability: 5000pcs/day
Contact Now
Detailed Product Description
Application: Chemical Industry Feature: High Performance
Function: Seal Material: PTFE
Product Name: Expanded PTFE Gasket Style: O Ring



High Performance Expanded PTFE Gasket Seal For Chemical Industry





Description:



PTFE gasket materials are able to withstand significantly more aggressive chemical environments (including highly oxidizing environments) than standard non-asbestos gasket materials. However their temperature, pressure and mechanical performance is inferior to standard non-asbestos gasket materials. Metal inserted and expanded PTFE are able to operate at higher pressures.




PTFE is principally used as a gasket material because of it's capability to remain unaffected by the majority of chemicals used in industry. It is also classified, in most cases, as a food grade material, making it acceptable to both medical and food production industries. There are three basic types of PTFE gasket materials. Virgin PTFE , filled PTFE and expanded PTFE .

Virgin PTFE is by far the least expensive of the three varieties, and is used in most general applications. Filled PTFE is a gasket material with a virgin PTFE base to which a substance is added during manufacture to improve the sealing characteristics of PTFE . This "filler" usually is glass or graphite particles although ceramics has sometimes been used. The resulting gasket material is strong, yet highly compressible with very good, though not universal, chemical resistance.

Expanded PTFE is virgin PTFE to which a stress resistance has been added by means of molecular rearrangement during manufacture. This process ensures that the molecular chains from which the PTFE is constructed, do not arrange themselves into set patterns. This means that expanded PTFE possesses no structural weakness (grain) and expands and contracts equally in all directions. Because no additives are required, expanded PTFE also possesses the unique chemical resistance of virgin PTFE

ERM sealing company offer a wide range size of the gasket  size from 5MM -500MM  , all these gaskets used for machine, chemical , vehicle and lab .





Specifications:



Material

Max T
(F)

Max P
(psi)

Creep Rel'n
(%)

Applications/Features

Pure PTFE

260

800

35 - 55

Excellent chemical resistance.

Filled PTFE

260

1200

11 - 40

Excellent chemical resistance.

Filled PTFE - Metal Inserted

260

2500

20

Excellent chemical resistance. 316 SS perforated core.

Expanded PTFE

260

3000

30

Excellent chemical resistance. Highly compressible.
