Corrosion Resistant Ptfe Teflon Gasket Filled With Carbon Fiber

Name: Corrosion Resistant Ptfe Teflon Gasket Filled With Carbon Fiber
Brand: Corrosion resistant ptfe spacer filled with carbon fiber
SKU: PTFE TEFLON GASKET
Price: 7 USD
Availability: InStock
Rating: 4.7 (148 reviews)

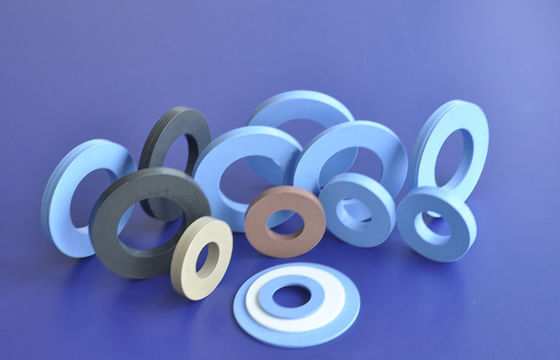

Large Image : Corrosion Resistant Ptfe Teflon Gasket Filled With Carbon Fiber

Product Details:

Place of Origin:	China
Brand Name:	Corrosion resistant ptfe spacer filled with carbon fiber
Certification:	ISO 9001,ROHS
Model Number:	PTFE TEFLON GASKET

Payment & Shipping Terms:

Minimum Order Quantity:	1 pc
Price:	FOB USD 7-11Kilogram/Based on negotiation
Packaging Details:	Packing by Carton/Wooden Cases
Delivery Time:	Normally 15-30 days
Payment Terms:	T/T, L/C
Supply Ability:	15 Tons/Month

Contact Now

Detailed Product Description

Features:	High Heat Exchanging Efficiency	Advantages:	Easy Cleaning And Maintain
Application:	Refrigerator Gasket	Yield Strength:	Yield Strength
Tensile Strength (min):	30MPa	Density:	2.2-2.3g/m3
High Light:	Color ptfe spacer , ptfe spacer

Corrosion Resistant Ptfe Teflon Gasket Filled With Carbon Fiber

Quick Details

1.High Heat Exchanging Efficiency
2.low cost
3.More Compact
4.Low Fouling and long life time
5.Easy cleaning and mainte

Main Features

1.Heat resistance property---It is able to wok stably between -180°C to +260°C.
2.Excellent non-sticky property---It easier to remove those resin, dopes, oil and other sticky things.
3.Good mechanical property with no distortion and low friction coefficient.
4.has minimum friction coefficient of all know pure material
5. Non-viscous, no aging
6.Now molds can be made according to customers requirements

Description

Enhanced PTFE product have strong corrosion-resistance and friction-resistance.By adding filler such as glass fiber,carbon fiber,graphite,MOS2.Al203,Carbon fiber powder, compression strength and abrasion-resistance of the product is improved.In addition, it will have good heat conductivity and low heat expansion coefficient.High frequency coaxial coupling,Connector and attenuator in electronics and telecommunication,Also it is applicable to various sealing gasket,sealing plug or sealing seat in valves,air conditioner,refrigerator and automotive parts as well as other apparatus with high precision requirement.

Specifications

outside diameter/inside diameter × height(mm)	outside diameter/inside diameter × height(mm)	outside diameter/inside diameter × height(mm)	outside diameter/inside diameter × height(mm)
12.5/8.5 × 2	28/24 × 2	43/27 × 2	71/59 × 2
20/14 × 2	34/28 × 1.5	52/41.5 × 2	90/80 × 2
26/605 × 3	42/34 × 2	70/60 × 2.5	150/140 × 2.5
155/135 × 2	164/137 × 5	219/191 × 3	250/220 × 2

Properties

1.Working temperature:-180~+260°C

2.Melting point:327°C

3.Yield strength: 23MPa

4.Density: 2.2-2.3g/m³

5.Coefficient of friction<0.10

6.Strong chemical-resistant

Filling Material

Glass Fiber:	Increases compressive strength, rigidity and wear. Reduces creep and cold flow Minimal effect on chemical and electrical properties
Carbon:	Increases compressive strength, hardness, wear, and load properties. Good chemical resistance Various types and amounts of carbon can be added to alter conductivity
Graphite:	Reduces coefficient of friction Reduces initial wear Increases strength
Molybdenum Disulfide:	Increases hardness, stiffness, and wear Minimal effect on chemical and electrical properties
Bronze:	Increases hardness and wear resistance Increases dimensional stability and compressive strength Not suitable for corrosive or electrical applications

Technical Indexes

Properties	Unit	Result
Apparent density	g/cm3	2.10-2.30
Tensile strength (min)	MPa	30
Ultimate elongation (min)	%	300

Product No.	Filled compound and content by weight	Tension strength MPa min	Ultimate strength% min	Compresive strength MPa min
1	20% glass fiber	10	120	16
2	25% glass fiber	10	100	16
3	20% glass fiber graphile	10	120	16
4	60% bronze	10	80	20
5	15% carbon fiber	11	130	16
6	24% bronze 12%glass fiber 6% graphite	9	100	16
7	15%glass fiber 105polyikmide 5% graphite	10	120	16.7

Production

Package

Application

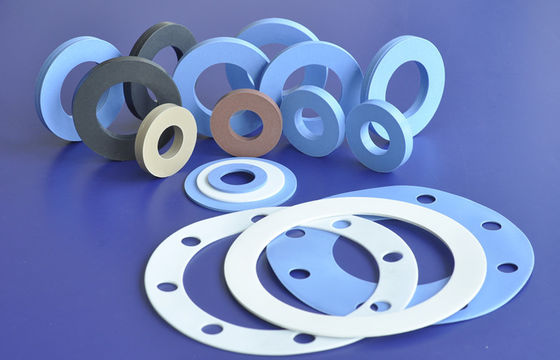

Corrosion Resistant Ptfe Teflon Gasket Filled With Carbon Fiber 2

Used in the chemicals, solvents, corrosives, gases, water,steam, ammonia, air, oils, paper stock, liquor fields.

The raw material comes from top quality suppliers

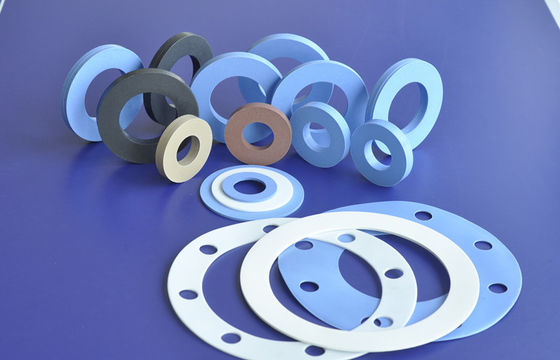

Corrosion Resistant Ptfe Teflon Gasket Filled With Carbon Fiber 3
