Anti - Creeping Ptfe Teflon Gasket Heat Resistant For Refrigerator

China Anti - Creeping Ptfe Teflon Gasket Heat Resistant For Refrigerator supplier
Anti - Creeping Ptfe Teflon Gasket Heat Resistant For Refrigerator supplier Anti - Creeping Ptfe Teflon Gasket Heat Resistant For Refrigerator supplier Anti - Creeping Ptfe Teflon Gasket Heat Resistant For Refrigerator supplier Anti - Creeping Ptfe Teflon Gasket Heat Resistant For Refrigerator supplier

Large Image :  Anti - Creeping Ptfe Teflon Gasket Heat Resistant For Refrigerator

Product Details:

Place of Origin: China
Brand Name: Good Anti-Creeping Performance Teflon Gasket
Certification: ISO 9001,ROHS
Model Number: PTFE TEFLON GASKET

Payment & Shipping Terms:

Minimum Order Quantity: 1 pc
Price: FOB USD 7-11Kilogram/Based on negotiation
Packaging Details: Packing by Carton/Wooden Cases
Delivery Time: Normally 15-30 days
Payment Terms: T/T, L/C
Supply Ability: 15 Tons/Month
Contact Now
Detailed Product Description
Features: High Heat Exchanging Efficiency Advantages: Easy Cleaning And Maintain
Application: Refrigerator Gasket Yield Strength: Yield Strength
Density: 2.2-2.3g/m3 Tensile Strength (min): 30MPa

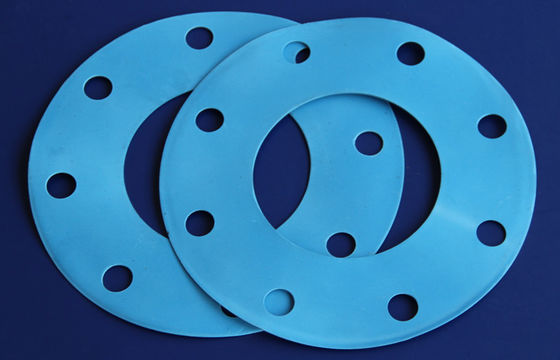

Anti - Creeping Ptfe Teflon Gasket Heat Resistant For Refrigerator


Quick Details

1.High Heat Exchanging Efficiency
2.low cost
3.More Compact
4.Low Fouling and long life time
5.Easy cleaning and maintain



Main Features

1.Heat resistance property---It is able to wok stably between -180°C to +260°C.
2.Excellent non-sticky property---It easier to remove those resin, dopes, oil and other sticky things.
3.Good mechanical property with no distortion and low friction coefficient.
4.has minimum friction coefficient of all know pure material
5. Non-viscous, no aging
6.Now molds can be made according to customers requirements



Description

Enhanced PTFE product have strong corrosion-resistance and friction-resistance.By adding filler such as glass fiber,carbon fiber,graphite,MOS2.Al203,Carbon fiber powder, compression strength and abrasion-resistance of the product is improved.In addition, it will have good heat conductivity and low heat expansion coefficient.High frequency coaxial coupling,Connector and attenuator in electronics and telecommunication,Also it is applicable to various sealing gasket,sealing plug or sealing seat in valves,air conditioner,refrigerator and automotive parts as well as other apparatus with high precision requirement.



Specifications

outside diameter/inside diameter × height(mm) outside diameter/inside diameter × height(mm) outside diameter/inside diameter × height(mm) outside diameter/inside diameter × height(mm)
12.5/8.5 × 2 28/24 × 2 43/27 × 2 71/59 × 2
20/14 × 2 34/28 × 1.5 52/41.5 × 2 90/80 × 2
26/605 × 3 42/34 × 2 70/60 × 2.5 150/140 × 2.5
155/135 × 2 164/137 × 5 219/191 × 3 250/220 × 2


Properties

1.Working temperature:-180~+260°C

2.Melting point:327°C

3.Yield strength: 23MPa

4.Density: 2.2-2.3g/m3

5.Coefficient of friction<0.10

6.Strong chemical resistant



Filling Material

Glass Fiber:

Increases compressive strength, rigidity and wear.
Reduces creep and cold flow
Minimal effect on chemical and electrical properties

Carbon:

Increases compressive strength, hardness, wear, and load properties.
Good chemical resistance
Various types and amounts of carbon can be added to alter conductivity

Graphite:

Reduces coefficient of friction
Reduces initial wear
Increases strength

Molybdenum Disulfide:

Increases hardness, stiffness, and wear
Minimal effect on chemical and electrical properties

Bronze:

Increases hardness and wear resistance
Increases dimensional stability and compressive strength
Not suitable for corrosive or electrical applications



Technical Indexes

Properties

Unit

Result

Apparent density

g/cm3

2.10-2.30

Tensile strength (min)

MPa

30

Ultimate elongation (min)(min)

%

300





Product   No. Filled  compound  and content  by weight Tension  strength MPa  min Ultimate  strength%  min Compresive  strength MPa  min
1 20%   glass   fiber 10 120 16
2 25%   glass   fiber 10 100 16
3 20%   glass   fiber      graphile 10 120 16
4 60%   bronze 10 80 20
5 15%   carbon   fiber 11 130 16
6 24%   bronze  12%glass  fiber   6%  graphite 9 100 16
7 15%glass  fiber   105polyikmide   5% graphite 10 120 16.7



Production

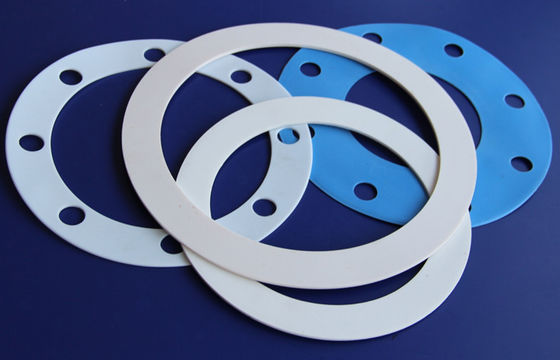

Anti - Creeping Ptfe Teflon Gasket Heat Resistant For Refrigerator



Package

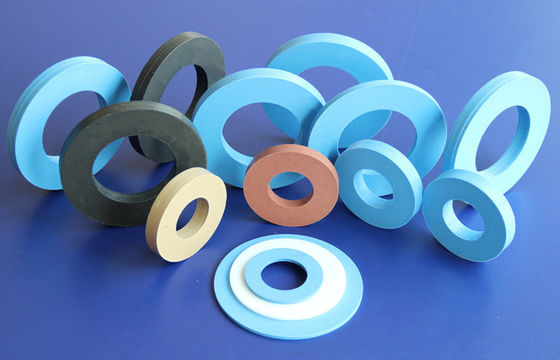

Anti - Creeping Ptfe Teflon Gasket Heat Resistant For Refrigerator



Application

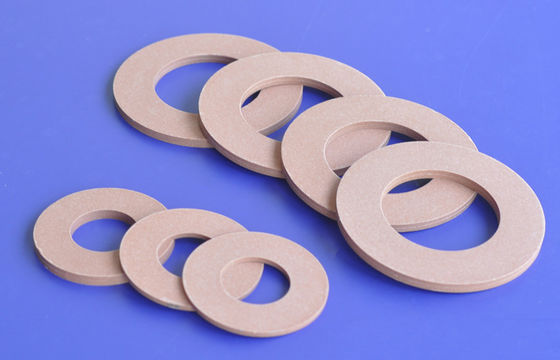

Anti - Creeping Ptfe Teflon Gasket Heat Resistant For Refrigerator

Used in the chemicals, solvents, corrosives, gases, water,steam, ammonia, air, oils, paper stock, liquor fields.



The raw material comes from top quality suppliers
 Anti - Creeping Ptfe Teflon Gasket Heat Resistant For Refrigerator
