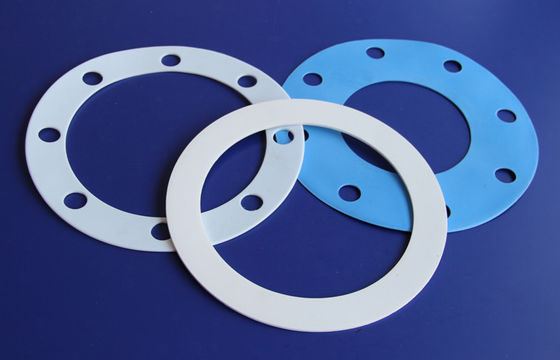

Heat Resistant Ptfe Teflon Gasket Sealing , 30MPa Tensile Strength

China Heat Resistant Ptfe Teflon Gasket Sealing , 30MPa Tensile Strength supplier
Heat Resistant Ptfe Teflon Gasket Sealing , 30MPa Tensile Strength supplier Heat Resistant Ptfe Teflon Gasket Sealing , 30MPa Tensile Strength supplier Heat Resistant Ptfe Teflon Gasket Sealing , 30MPa Tensile Strength supplier Heat Resistant Ptfe Teflon Gasket Sealing , 30MPa Tensile Strength supplier

Large Image :  Heat Resistant Ptfe Teflon Gasket Sealing , 30MPa Tensile Strength

Product Details:

Place of Origin: China
Brand Name: Excellent PTFE Gasket Made in China
Certification: ISO 9001,ROHS
Model Number: PTFE TEFLON GASKET

Payment & Shipping Terms:

Minimum Order Quantity: 1 pc
Price: FOB USD 7-11Kilogram/Based on negotiation
Packaging Details: Packing by Carton/Wooden Cases
Delivery Time: Normally 15-30 days
Payment Terms: T/T, L/C
Supply Ability: 15 Tons/Month
Contact Now
Detailed Product Description
Working Temperature: -180~+260°C Yield Strength: 23MPa
Density: 2.2-2.3g/m3 Advantages: Strong Chemical Resistant, Heat Resistant Gasket
Tensile Strength: 30MPa Ultimate Elongation: 300%

Heat Resistant Ptfe Teflon Gasket Sealing , 30mpa Tensile Strength


Quick Details

1.OD: 3mm ~ 2000mm
2.Density: 2.1 ~ 2.3 g/cm3
3.FDA, ROSH certification
4.customize ptfe gasket
5.Factory price



Description

Enhanced PTFE product have strong corrosion-resistance and friction-resistance.By adding filler such as glass fiber,carbon fiber,graphite,MOS2.Al203,Carbon fiber powder, compression strength and abrasion-resistance of the product is improved.In addition, it will have good heat conductivity and low heat expansion coefficient.High frequency coaxial coupling,Connector and attenuator in electronics and telecommunication,Also it is applicable to various sealing gasket,sealing plug or sealing seat in valves,air conditioner,refrigerator and automotive parts as well as other apparatus with high precision requirement.



Main Features

1.Heat resistance property---It is able to wok stably between -180°C to +260°C.
2.Excellent non-sticky property---It easier to remove those resin, dopes, oil and other sticky things.
3.Good mechanical property with no distortion and low friction coefficient.
4.has minimum friction coefficient of all know pure material
5. Non-viscous, no aging
6.Now molds can be made according to customers requirements



Specifications

outside diameter/inside diameter × height(mm) outside diameter/inside diameter × height(mm) outside diameter/inside diameter × height(mm) outside diameter/inside diameter × height(mm)
12.5/8.5 × 2 28/24 × 2 43/27 × 2 71/59 × 2
20/14 × 2 34/28 × 1.5 52/41.5 × 2 90/80 × 2
26/605 × 3 42/34 × 2 70/60 × 2.5 150/140 × 2.5
155/135 × 2 164/137 × 5 219/191 × 3 250/220 × 2




Properties



1.Working temperature:-180~+260°C

2.Melting point:327°C

3.Yield strength: 23MPa

4.Density: 2.2-2.3g/m3

5.Coefficient of friction<0.10

6.Strong chemical resistant



Filling Material

Glass Fiber:

Increases compressive strength, rigidity and wear.
Reduces creep and cold flow
Minimal effect on chemical and electrical properties

Carbon:

Increases compressive strength, hardness, wear, and load properties.
Good chemical resistance
Various types and amounts of carbon can be added to alter conductivity

Graphite:

Reduces coefficient of friction
Reduces initial wear
Increases strength

Molybdenum Disulfide:

Increases hardness, stiffness, and wear
Minimal effect on chemical and electrical properties

Bronze:

Increases hardness and wear resistance
Increases dimensional stability and compressive strength
Not suitable for corrosive or electrical applications





Technical Indexes

Properties

Unit

Result

Apparent density

g/cm3

2.10-2.30

Tensile strength (min)

MPa

30

Ultimate elongation (min)

%

300





Product   No. Filled  compound  and content  by weight Tension  strength MPa  min Ultimate  strength%  min Compresive  strength MPa  min
1 20%   glass   fiber 10 120 16
2 25%   glass   fiber 10 100 16
3 20%   glass   fiber      graphile 10 120 16
4 60%   bronze 10 80 20
5 15%   carbon   fiber 11 130 16
6 24%   bronze  12%glass  fiber   6%  graphite 9 100 16
7 15%glass  fiber   105polyikmide   5% graphite 10 120 16.7





Production

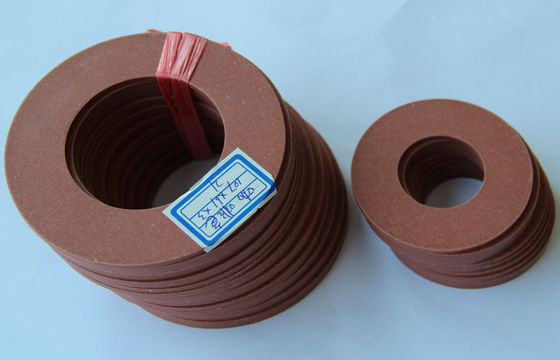

Heat Resistant Ptfe Teflon Gasket Sealing , 30MPa Tensile Strength





Package

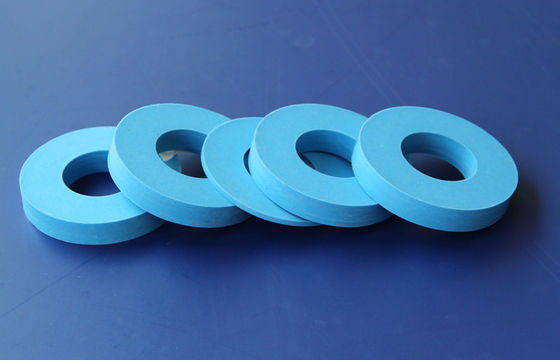

Heat Resistant Ptfe Teflon Gasket Sealing , 30MPa Tensile Strength





Application

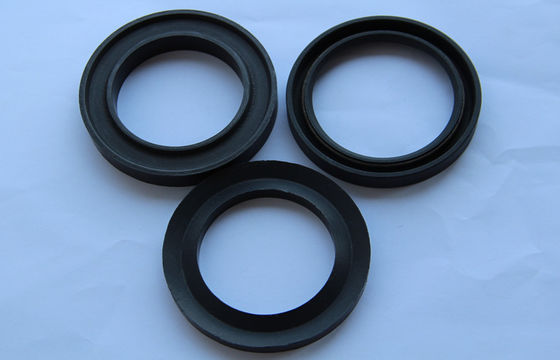

Heat Resistant Ptfe Teflon Gasket Sealing , 30MPa Tensile Strength

Used in the chemicals, solvents, corrosives, gases, water,steam, ammonia, air, oils, paper stock, liquor fields.





The raw material comes from top quality suppliers
 Heat Resistant Ptfe Teflon Gasket Sealing , 30MPa Tensile Strength
