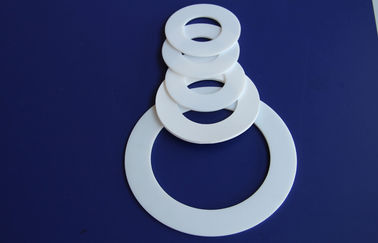

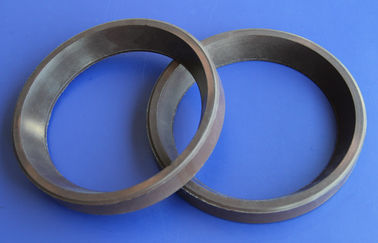

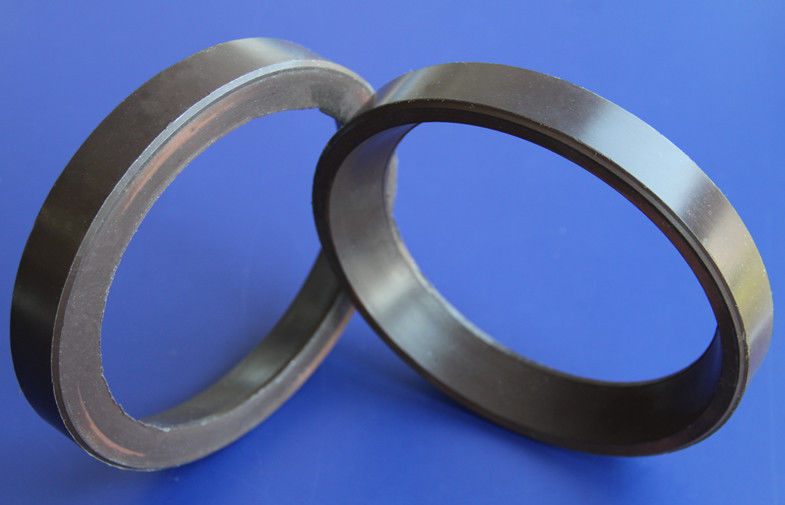

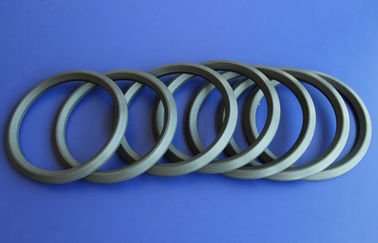

High Temperature Rubber Ptfe Teflon Gasket With 23MPa Yield Strength

China High Temperature Rubber Ptfe Teflon Gasket With 23MPa Yield Strength supplier
High Temperature Rubber Ptfe Teflon Gasket With 23MPa Yield Strength supplier High Temperature Rubber Ptfe Teflon Gasket With 23MPa Yield Strength supplier High Temperature Rubber Ptfe Teflon Gasket With 23MPa Yield Strength supplier High Temperature Rubber Ptfe Teflon Gasket With 23MPa Yield Strength supplier

Large Image :  High Temperature Rubber Ptfe Teflon Gasket With 23MPa Yield Strength

Product Details:

Place of Origin: China
Brand Name: Manufacture Cheap Rubber PTFE Gasket
Certification: ISO 9001,ROHS
Model Number: PTFE TEFLON GASKET

Payment & Shipping Terms:

Minimum Order Quantity: 1 pc
Price: FOB USD 7-11Kilogram/Based on negotiation
Packaging Details: Packing by Carton/Wooden Cases
Delivery Time: Normally 15-30 days
Payment Terms: T/T, L/C
Supply Ability: 15 Tons/Month
Contact Now
Detailed Product Description
OD: 3mm ~ 2000mm Density: 2.1 ~ 2.3 G/cm3
Temp: High Temperature Gasket Certificate: ISO9001 2008 ROHS
Yield Strength: 23MPa Advantages: Strong Chemical Resistant

High Temperature Rubber Ptfe Teflon Gasket With 23MPa Yield Strength


Quick Details

1.OD: 3mm ~ 2000mm
2.Density: 2.1 ~ 2.3 g/cm3
3.Temp: -180C ~ + 260 C
4.ISO9001 2008 ROHS

Main Features

1.Item name: China Rubber Bushing,Bearing Bushing,Polyurethane Bushing
2.Logo/Color/Size: Mostly black or according to your requirement
3.Unit price: Depends on the material and the detailed design
4.Small orders and sample orders are also welcomed
5.MOQ: 500 pcs/item if we have stocks
6.OEM orders and customized specifications are welcome
7.Packing: Plastic Bag and Carton is free or according to your request
8.Delivery time: Within 7-15 Days or according to your request
9.Payment term: T/T in advance,Westerunion
10.Material: PU,NBR,FPM,VITON,SIL,ACM,EPDM,NR,EVA,PA,TPU,PE,PP,PTFE,POM,PVC,ABS,PC,PS...
11.Use:Automobile,Motocycles,Trucks,Buses,Trailers,Ship,PowerMachinery, AgriculturalMachinery,

MiningMachinery,Engineering Machinery,Exercise Equipments…

Description



Enhanced PTFE product have strong corrosion-resistance and friction-resistance.By adding filler such as glass fiber,carbon fiber,graphite,MOS2.Al203,Carbon fiber powder, compression strength and abrasion-resistance of the product is improved.In addition, it will have good heat conductivity and low heat expansion coefficient.High frequency coaxial coupling,Connector and attenuator in electronics and telecommunication,Also it is applicable to various sealing gasket,sealing plug or sealing seat in valves,air conditioner,refrigerator and automotive parts as well as other apparatus with high precision requirement.



Specifications

outside diameter/inside diameter × height(mm) outside diameter/inside diameter × height(mm) outside diameter/inside diameter × height(mm) outside diameter/inside diameter × height(mm)
12.5/8.5 × 2 28/24 × 2 43/27 × 2 71/59 × 2
20/14 × 2 34/28 × 1.5 52/41.5 × 2 90/80 × 2
26/605 × 3 42/34 × 2 70/60 × 2.5 150/140 × 2.5
155/135 × 2 164/137 × 5 219/191 × 3 250/220 × 2


Properties



1.Working temperature:-180~+260°C

2.Melting point:327°C

3.Yield strength: 23MPa

4.Density: 2.2-2.3g/m3

5.Coefficient of friction<0.10

6.Strong chemical resistant



Filling Material



Glass Fiber:

Increases compressive strength, rigidity and wear.
Reduces creep and cold flow
Minimal effect on chemical and electrical properties

Carbon:

Increases compressive strength, hardness, wear, and load properties.
Good chemical resistance
Various types and amounts of carbon can be added to alter conductivity

Graphite:

Reduces coefficient of friction
Reduces initial wear
Increases strength

Molybdenum Disulfide:

Increases hardness, stiffness, and wear
Minimal effect on chemical and electrical properties

Bronze:

Increases hardness and wear resistance
Increases dimensional stability and compressive strength
Not suitable for corrosive or electrical applications



Technical Indexes



Properties

Unit

Result

Apparent density

g/cm3

2.10-2.30

Tensile strength (min)

MPa

30

Ultimate elongation (min)

%

300





Product   No. Filled  compound  and content  by weight Tension  strength MPa  min Ultimate  strength%  min Compresive  strength MPa  min
1 20%   glass   fiber 10 120 16
2 25%   glass   fiber 10 100 16
3 20%   glass   fiber      graphile 10 120 16
4 60%   bronze 10 80 20
5 15%   carbon   fiber 11 130 16
6 24%   bronze  12%glass  fiber   6%  graphite 9 100 16
7 15%glass  fiber   105polyikmide   5% graphite 10 120 16.7



Production

High Temperature Rubber Ptfe Teflon Gasket With 23MPa Yield Strength



Package

High Temperature Rubber Ptfe Teflon Gasket With 23MPa Yield Strength



Application



High Temperature Rubber Ptfe Teflon Gasket With 23MPa Yield Strength

Used in the chemicals, solvents, corrosives, gases, water,steam, ammonia, air, oils, paper stock, liquor fields.



The raw material comes from top quality suppliers
 High Temperature Rubber Ptfe Teflon Gasket With 23MPa Yield Strength
