Corrosion Prevention F4 Ptfe Teflon Rod Round Bar , Bronze / Glass Fibre Ptfe

Certification
Good quality PTFE Silicone Septa for sales
Good quality PTFE Silicone Septa for sales
Good Products ,Good Service,Good Sourcing Platform!

—— Michael

Easy to talk with, very professional and fast service, the flag quality is super good. Even better than we ordered from Germany!!

—— Germany Fabian Scherb

We trust the quality of your products. It always the best. Keep this going, and we will establish a long-term trade relationship with you.

—— Mr Zero

I'm Online Chat Now

Corrosion Prevention F4 Ptfe Teflon Rod Round Bar , Bronze / Glass Fibre Ptfe

China Corrosion Prevention F4 Ptfe Teflon Rod Round Bar , Bronze / Glass Fibre Ptfe supplier
Corrosion Prevention F4 Ptfe Teflon Rod Round Bar , Bronze / Glass Fibre Ptfe supplier Corrosion Prevention F4 Ptfe Teflon Rod Round Bar , Bronze / Glass Fibre Ptfe supplier Corrosion Prevention F4 Ptfe Teflon Rod Round Bar , Bronze / Glass Fibre Ptfe supplier Corrosion Prevention F4 Ptfe Teflon Rod Round Bar , Bronze / Glass Fibre Ptfe supplier

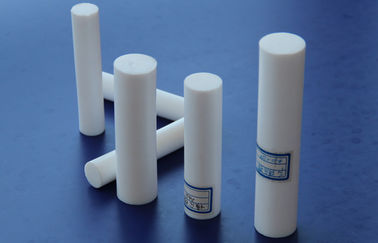

Large Image :  Corrosion Prevention F4 Ptfe Teflon Rod Round Bar , Bronze / Glass Fibre Ptfe

Product Details:

Place of Origin: Jiangsu, China (Mainland)
Brand Name: WXXJ
Certification: ISO9001/14001
Model Number: corrosion prevention F4 rod
Diameter: 1mm-500mm
Size: as order
Color: white,black,colorful
Temperature: -180 - + 260 ℃
Package: Carton/Wooden Cases
Filling: graphite,carbon, bronze,glass fibre

Payment & Shipping Terms:

Minimum Order Quantity: 1 pc
Price: USD7~11/kg FOB Shanghai/Ningbo
Packaging Details: packed by Plywood cases that don't need fumigation. Other packing is customized according to client'
Delivery Time: normally 15-30 days
Payment Terms: T/T L/C
Supply Ability: 30 Tons/Month
Contact Now
Detailed Product Description



Corrosion Prevention F4 Ptfe Teflon Rod Round Bar , Bronze / Glass Fibre Ptfe





Quick Detail:



  1. High chemical resistance

  2. High temperature resistance

  3. Non-contaminating

  4. Maintenance free

  5. Long durability

  6. Self lubricating





Description:



PTFE has a wide range of practicable temperature from 180%°C - +260°C and a wax-like surface to which anything hardly sticks. PTFE has the lowest coefficient of friction of all known solid materials. It has the best electrical properties of all plastics.





Specifications:



There are two kinds of PTFE rods to offer. One is manufactured by Paste extruding method in the diameter from 1 to 10mm and the other Is made by ram extruding method is the diameter from 10 to 50mm; rods over the diameter 50mm are manufactured by moulding Sizes Availabe:


1. Extruded Rod Min. Diameter= 1mm, Max. Diameter= 150mm,
Length= normal 1 m, or according to customer's request
2. Moulded Rod Min. Diameter= 5mm, Max. Diameter=500mm,
Length: Max. 1 m, or according to customer's request

3.Size can be made based on customers' detailed requirement.





Main Property:



Corrosion Prevention F4 Ptfe Teflon Rod Round Bar , Bronze / Glass Fibre Ptfe





Main Features:



Strength (high strength-to-weight ratio)

Chemical inertness of this PTFE teflon oil seal is good

Biocompatibility

High thermal resistance

High chemical resistance in harsh environments

Low flammability

Low coefficient of friction

This PTFE teflon oil seal has low dielectric constant

Low water adsorption

Good weathering properties



PTFE resin,filled with some filling stuff,can prolong the life of products and strengthen the performance,eg:Graphite,Carbon ,Glass fiber ,bronze



Glass Fiber:

Increases compressive strength, rigidity and wear.
Reduces creep and cold flow
Minimal effect on chemical and electrical properties

Carbon:

Increases compressive strength, hardness, wear, and load properties.
Good chemical resistance
Various types and amounts of carbon can be added to alter conductivity

Graphite:

Reduces coefficient of friction
Reduces initial wear
Increases strength

Molybdenum Disulfide:

Increases hardness, stiffness, and wear
Minimal effect on chemical and electrical properties

Bronze:

Increases hardness and wear resistance
Increases dimensional stability and compressive strength
Not suitable for corrosive or electrical applications





Production Flow:



Corrosion Prevention F4 Ptfe Teflon Rod Round Bar , Bronze / Glass Fibre Ptfe



Package



Corrosion Prevention F4 Ptfe Teflon Rod Round Bar , Bronze / Glass Fibre Ptfe





Our products can be used at the following fields:



Corrosion Prevention F4 Ptfe Teflon Rod Round Bar , Bronze / Glass Fibre Ptfe





The raw material comes from top quality suppliers:



Corrosion Prevention F4 Ptfe Teflon Rod Round Bar , Bronze / Glass Fibre Ptfe
