Class 150 ~ 300 high pressure Stainless steel Floating Ball Valve ASTM A216 WCB, A351 CF8

China Class 150 ~ 300 high pressure Stainless steel Floating Ball Valve ASTM A216 WCB, A351 CF8 supplier

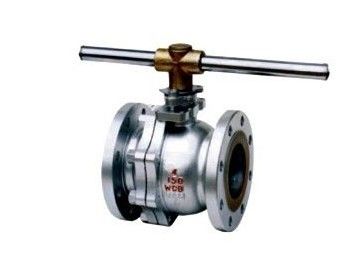

Large Image :  Class 150 ~ 300 high pressure Stainless steel Floating Ball Valve ASTM A216 WCB, A351 CF8

Product Details:

Place of Origin: China
Brand Name: OEM
Model Number: Class 150~300

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Packaging Details: Wooden box
Delivery Time: Within 15days
Payment Terms: T/T
Supply Ability: 1000pcs / month
Contact Now
Detailed Product Description

Class 150 ~ 300 high pressure Stainless steel Floating Ball Valve ASTM A216 WCB, A351 CF8, A351 CF3, A351 CF3M, A351 CN7M



Bolted bonnet, Two-piece Body, Floating Ball

Full or Reduced bore, Blowout Proof Stem

Fire safe and Anti static

Stainless steel ball

ASTM A216 WCB, A351 CF8, A351 CF8M,

A351 CF3, A351 CF3M, A351 CN7M



Standards compliance



Design and Manufacture: API 608, API 6D, BS5351

Face to face(end to end): ANSI B16.10, API 6D

Flanged connection:2~~24~to ANSI B16.5

Fire-safe: API 607, API 6FA

Butt welded end: ANSI B16.25

Test and inspection: API 598, API 6D



Materials

NO.

Part name

Material

13

Handle

Carbon steel

12

Lock nut

Carbon steel

11

Gland nut

Carbon steel

10

Thrust washer

PTFE/NYLON

09

Gland bush

Stainless steel

08

Stem

Stainless steel



NO.

Part name

WCB

LCB

07

Stud and nut

A193 Gr B7/A194 Gr 2H

A320 Gr L7/A194 Gr 4

06

Packing

Graphite/ptfe

Graphite/ptfe

05

Ball seat

PTFE/RPTFE/NYLON

SPTFE/RPTFE/NYLON

04

Gasket

Grafoil/spiral wound

Grafoil/spiral wound

03

Ball

A182 F6a

A182 F304

02

R-body

A216 Gr WCB

A352 Gr LCB

01

L-body

A216 Gr WCB

A352 Gr LCB



NO.

Part name

CF8

CF8M

07

Stud and nut

A193 Gr B16/A194 Gr 4/7

A193 Gr B7/A194 Gr 2H

06

Packing

Graphite/ptfe

Graphite/ptfe

05

Ball seat

PTFE/RPTFE/NYLON

PTFE/RPTFE/NYLON

04

Gasket

Grafoil/spiral wound

Grafoil/spiral wound

03

Ball

A182 F304

A182 F316

02

R-body

A351 Gr CF8

A351 Gr CF8M

01

L-body

A351 Gr CF8

A351 Gr CF8M



CLASS 150~300 FLOATING BALL VALVE



Dimensions

Class 150

Size

inch

1/2

3/4

1

1-1/2

2

2-1/2

3

4

6

8

L-RF

mm

108

117

127

165

178

191

203

229

394

457

L1-BW

mm

140

152

165

190

216

241

283

305

457

521

L2-RTJ

mm

-

-

140

178

191

203

216

241

406

470

B

mm

13

19

25

38

51

64

76

102

152

203

H

mm

65

70

80

95

110

135

145

170

235

275

K

mm

150

155

160

180

200

225

325

350

500

600

WT.

Kg

3

4

5

8

12

21

26

43

80

155



Dimensions

Class 300

Size

inch

1/2

3/4

1

1-1/2

2

2-1/2

3

4

6

8

L-RF

mm

140

152

165

190

216

241

283

305

403

502

L1-BW

mm

140

152

165

191

216

241

283

305

457

521

L2-RTJ

mm

151

165

178

203

232

257

298

321

419

518

B

mm

13

19

25

38

51

64

76

102

152

203

H

mm

70

85

90

105

120

145

160

195

250

290

K

mm

155

160

180

200

225

325

350

500

600

700

WT.

Kg

3

5

7

13

15

28

32

55

105

170
