High Precision Circular Speed Reducer Gear Box For Rubber & Plastic Extruder

China High Precision Circular Speed Reducer Gear Box For Rubber & Plastic Extruder supplier
High Precision Circular Speed Reducer Gear Box For Rubber & Plastic Extruder supplier High Precision Circular Speed Reducer Gear Box For Rubber & Plastic Extruder supplier

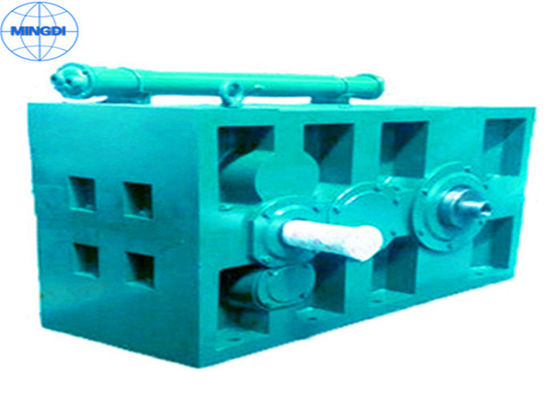

Large Image :  High Precision Circular Speed Reducer Gear Box For Rubber & Plastic Extruder

Product Details:

Place of Origin: Changzhou, Jiangsu, China
Brand Name: MINGDI
Certification: ISO, ROHS, CE
Model Number: ZLYJ Series

Payment & Shipping Terms:

Minimum Order Quantity: 1 SET
Price: Negotiable
Packaging Details: Airworthy & seaworthy Wooden Cases with pallets
Delivery Time: 28-40 Working days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 400,000 Sets Per Year
Contact Now
Detailed Product Description
Gearing Arrangement: Helical Gear Type: Circular Gear
Output Speed: 30-188rpm Rated Power: 5.5-540KW
Color: As Request Manufacturing Method: Cast Gear
Warranty: One Year Export Markets: Global
Mounting Position: Horizontal Or Vertical

5.5-540KW ZLYJ Series Helical Circular Gear Box for Rubber & Plastic Extruder



Specifications



1. for plastic & Rubber extruder



2. with thrust bag



3. High precision



Description:



1. Characteristics



Cooling way: Oil pump; Cooling coil ( internal cooling); Cooler( cooling water jacket)



A. All the items are treated by forced lubrication and cooling system except very few small specification products.



B. The material of gear is the high strength alloy steel, it is manufactured by carburizing, quenching( and other heat treatment), grinding process at last. The gear is in high precision( 6 grade) and high hardness( reaches HRC54-62). Besides, it features low noise when operating.



C. With high bearing ability thrust block, which is performed reliable and can withstand larger axial thrust



D. ZLYJ series gearbox is adopted by six-side processing box, Its normal installation is horizontal, but can also be changed to vertical installation according to customers' requirement.



E. Efficiency transmission, low noise, operation long time.

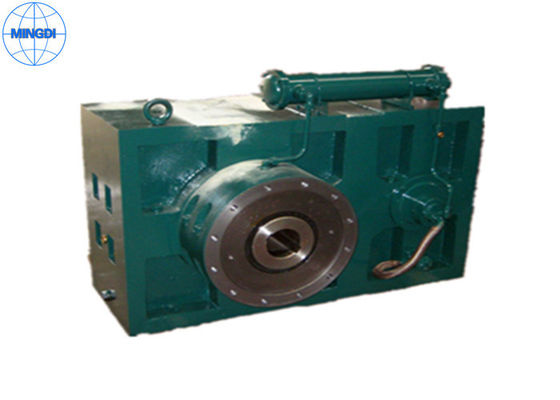

2. Brief Introduction for ZLYJ Series Gear Reducer & Its Picture Show



ZLYJ series speed reducers are high precision hardening tooth flank transmission part with thrust bearing housing. They are designed for plastic screw-rod extruder according to JB/T9050.1-1999. The gears and axes are made of high strength alloy steel. The gears are manufactured by way of carburizing hardening, precision grinding. Its precision is up to Grade 6(JB/T9050.1-1999.). Hardness of tooth flank is HRC54-62. Thrust bearing is in front of output hollow shaft to accommodate screw-rod back pressure forces. Bearings, oil seals and some other standard units are quality products and they can also be imported goods to meet customers' requirements. This kind of speed reducer has the characteristic of small volume, high load capacity, stable transmission, low noise, high efficiency. They properties reach levels of foreign products of the same kind and it can take place of them.





3. Company Profile & Workshop Corner Show



Changzhou Mingdi Machinery Co., Ltd is a professional transmission machinery manufacturer of producing various gears, gear transmission and reducers, the hardened-tooth-surface cylindrical gearbox that is our featured product is widely used in four fields, among which are electrical machinery, plastic extrusion machinery, railway engineering machinery and metallurgical machinery industry.

Your demand is our pursuit, hereby, we sincerely hope we could build up friendly business relationship with customers from all over the world, we will provide top service to you, and we are willing to work with all customers for common development and mutual benefit.



Applications



Applicable for the industries such as metallurgy, mine, chemical industry, construction materials,

hoisting, transportation, textile, paper marking, food, plastic, rubber, engineering machinery, and

energy industry.



Competitive Advantages



1. Ability to produce customerized products as request.

2. Complete processing & testing equipment.

3. Quality is our culture; quality is the soul of enterprise.

4. Competitive price: we can give you an edge over your competitor.

5. We ensure we will make immediate response on your enquires and any queries in 12 hours.



Main Technical Paremeters and Part Drawing Show





Type Spec Input Power(kw) N( enter) N(output) Output Torque Permitted axial thrust of output shaft(KN) Screw Diameter Length-diameter ratio
(N·m)
ZLYJ gearbox 112-8 5.5 800 100 525 35 Ø35 25:01:00
133-8 8 800 100 764 39 Ø50 25:01:00
146-10 11 1000 100 1050 54 Ø55 25:01:00
173-10 18.5 900 90 1962 110 Ø65 25:01:00
200-12.5 30 1000 80 3581 155 Ø75 25:01:00
225-12.5 45 1000 80 5371 180 Ø90 25:01:00
250-16 55 1120 70 7503 192 Ø105 25:01:00
280-16 75 960 60 7643 258 Ø110 25:01:00
315-16 85 960 60 13528 287 Ø120 25:01:00
330-16 110 960 60 17507 360 Ø135 25:01:00
375-16 132 960 60 21008 390 Ø150 25:01:00
395-16 185 960 60 29442 400 Ø160 25:01:00
420-16 160 960 60 31831 430 Ø160 25:01:00
420-16 220 960 60 31831 430 Ø170 25:01:00
450-20 213 1000 60 40640 500 Ø160/Ø170 25:01:00
560-17 540 1000 50 84034 700 Ø200 25:01:00
630-10 540 1000 50 103132 770 Ø250 25:01:00
