High Efficient Single Screw pvc extrusion machine For PP PE , Electrical heating

China High Efficient Single Screw pvc extrusion machine For PP PE , Electrical heating supplier
High Efficient Single Screw pvc extrusion machine For PP PE , Electrical heating supplier High Efficient Single Screw pvc extrusion machine For PP PE , Electrical heating supplier High Efficient Single Screw pvc extrusion machine For PP PE , Electrical heating supplier

Large Image :  High Efficient Single Screw pvc extrusion machine For PP PE , Electrical heating

Product Details:

Place of Origin: CHINA
Brand Name: FLAME
Certification: ISO9001:200, CE
Model Number: SJ series

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: USD5,000~20,000/set
Packaging Details: export packing
Delivery Time: 30 working days
Payment Terms: T/T
Supply Ability: 20 sets
Contact Now
Detailed Product Description
Heating Way: Electrical Heating Cooling Way: Cooling Water
Material: 38CrMoALA Temperature Control System: RKC

SJ Series High Efficient Single Screw Extruder Used For PP/PE/PS/ABS/PVC

This machine is mainly used to process PP, PE, PP-R, ABS and other plastics. Equipped with auxiliary machines, it can manufacture profile, pipe, sheets and other plastic products and granulation. It has the advantage of simple production technological process, high output, stable quality and low cost.

Name

Plastic Extruder

Heating Way

Electrical heating

Type

SJ Series

Feature

It is mainly used for extrusion of plastic

Gearbox

Hardened Reducer

Material of screw and barrel

38CrMoALA

Connect Way

Coupler

capacity

10-1500 Kg/h

Certificate

CE





3. Description:

SJ Series High Efficient Single Screw Extruder used for PP/PE/PS/ABS/PVC

This unit is mainly used in extruding PE, polyolefin and other thermoplastic plastic. It can process all kind of plastic products with auxiliary machine concerned, such as film, pipe, stick, plate, thread, ribbon, insulating layer of cable, hollow products and so on. It is also used in graining. The machine design is advanced, production capacity is high, plasticization is good, and energy consumption is low. The extruder adopts hard gear surface for transmission. It has advantages of low noise, smooth operation, large loading, long use-life and so on.



4. Equipment list

 Single Screw Extruder SJ75/33

Barrel

38CrMoAlA,Nitrification process

Screw

38CrMoAlA,Nitrification process

Temperature Control System

RKC control, EUROTHERM Speeder



Screw Diameter

Ф 75 mm

Screw L/D

33:1

Motor Power

90 KW

Motor

AC motor,  with inverter



Stainless Steel Heating Ring

38   KW

Cool Down Type for Cylinder

4×0.37kw , low noise fan



Capability

350Kg/h

***Auto Drying,Feeding System

Hardware

 imported from SIEMENS company

Control

LCD screen, English menu



Operation Board



Sense touch switch

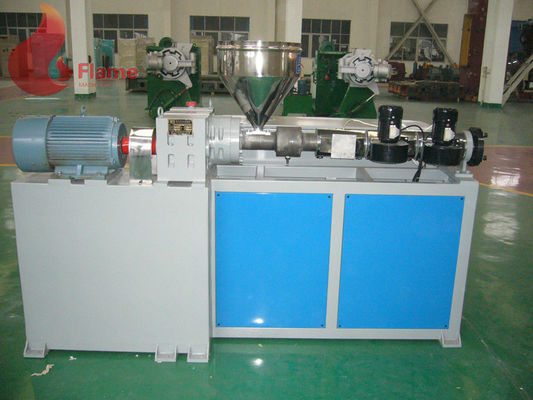

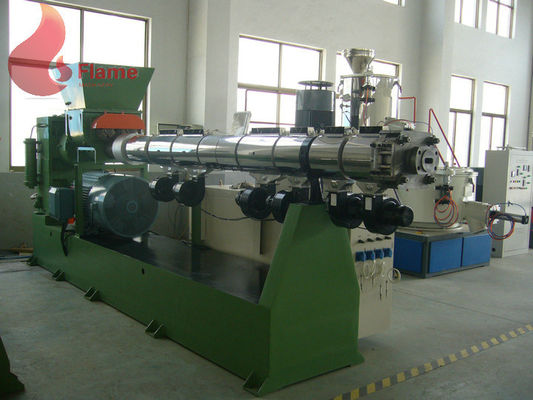

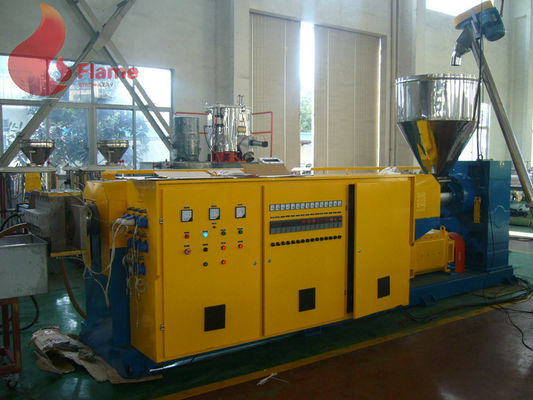

High Efficient Single Screw pvc extrusion machine For PP PE , Electrical heatingHigh Efficient Single Screw pvc extrusion machine For PP PE , Electrical heatingHigh Efficient Single Screw pvc extrusion machine For PP PE , Electrical heating

5. Applications:

1. Used for profile, sheet extrusion

2. Used for pipe extrusion



6. Main Technical Parameter:



Model

L/D

Output(Kg/h)

Screw speed(r/min)

Main motor(Kw)

Center height(mm)

SJ-25

25:1

5

20-120

2.2

1000

SJ-30

25:1

10

20-180

5.5

1000

SJ-45

25-33:1

50-150

20-150

7.5-22

1000

SJ-65

25-33:1

60-250

20-150

22-90

1000

SJ-75

25-33:1

200-350

20-150

55-110

1100

SJ-90

25-33:1

280-550

20-110

37-185

1000-1100

SJ-120

25-33:1

320-880

20-90

75-280

1000-1250

SJ-150

25-33:1

400-1200

20-75

90-355

1000-1300

SJ-200

25-33:1

500-1500

20-65

110-400

1000-1350





7.Competitive Advantage:

SJ series high efficient single screw extruder is developed by our company adopting German latest advanced technology. Screw optimizes composing separate type screw and mixing parts.

Barrel optimizes composing groove barrel and lengthened feeding segment. There is advantage as following by using separate type screw and groove barrel together.

It’s optimized during material melting process. Thus get more extrusion throughput.

It is realized extruding melt material in low temperature.

Cutting function is caused through separate clearance and it makes material equal well.

It’s controlled during melt plasticization process. Therefore only granules that smaller than separate clearance can enter melt channel.

Wide manufacture range for different materials. It is suitable for all kind of polyolefin materials and especially for material for HDPE, PP, and ABS pipe.



8. Service:



1. Oversea installation guide.

2. Oversea test running

3. Ovsersea worker training

4. Technical support

5. Spare parts supply

6. Technical operation support

7. Formula and processing support



9. Option



The extruder turns solid plastic into uniform melt and transfer it to the next craft by heating , pressing, shearing and other methods.

10. commercial terms

1. Payment: 30% by T/T as advance payment, balance(70%) by T/T

  before shipment

2. Lead Time: 60 days after receiving the advance payment

3. Transportation: container, simple package ( PE film, salver)

4.Warranty period: From the day of the use of the machine in the buyer’s

  factory:

   (1) The mechanical Parts: 12 months

   (2) The electrical Parts: 6 months

5. Installations and Commissioning

  (1) Up to date commissioning has been made before shipment

  (2) Overseas Commissioning and charges

   one or two technicians will be sent to the buyer to guide the

   installation and commissioning of the equipment if the customer

   requests.

   Customers pay the charge of our technicians.

   (1) Round-trip Airplane Ticket

   (2) Charges of transportation, accommodation and communication

   (3) The allowance for the technicians is USD 80 per day for one person.

   (4) An interpreter is needed.

6. Spare parts:

 Spare parts for one year are needed for the customers, and we suggest

 that customers should buy the spare parts. (Fittings list will be

 provided.)

7. English manual, Figuration drawing, and footing drawings are

  provided.
