High quality, Best service,Reasonable price.
Product Details:
Payment & Shipping Terms:
|
Size: | 38 X 8mm | Application: | Magnetic Stirring Bars |
---|---|---|---|
Color: | White | Feature: | High Performance |
Material: | PTFE | Product Name: | PTFE Ball Valve Seats |
High Light: | ball valve seat,high performance butterfly valves |
Quick Detail:
Material is PTFE and Magenetic
Temperature resistance: from -200°C to +250°C
Chemical resistance: +++ universal
PTFE-encapsulated magnetic core (Alnico 5), standard magnetic stirring bar, universal chemical resistance
Technical information
Magnetic stirring and mixing
What you should know about magnetic stirring and mixing
For optimum results, both drive magnet and stirring bar are decisive. For optimum efficiency, the distance between the magnetic poles of the drive magnet and the length of the stirring bar should be equal. A magnetic stirring bar which is too small will eventually gravitate toward one of the poles of the drive magnet. Stirring efficiency is influenced by the material, by the thickness of the cover plate and the thickness of the vessel. For the best magnetic coupling, the distance between the magnets should be minimized.
Stirrer - Magnetic Stirring
Magnetic stirring is a widely used method of stirring and mixing in liquid media. This process can be used over a broad temperature range and with virtually any chemical agent, as well as in open and closed systems, under pressure or vacuum.
The basic system consists of two components:
a stirrer magnet placed in the liquid and a magnetic drive located outside the vessel. Both, stirrer magnet and magnetic drive form a magnetic circuit. For trouble-free stirring in liquids with different viscosities the magnetic drive shall have a wide range of different speeds. That is why the strength and form of the magnetic circuit between stirrer magnet and drive magnet is so important.
Magnetic stirring bars: choise, tolerances and finishing
What you should know about the choice of stirring bars
Improperly selected stirring bars are often cause flickering of the bars in the vessel, respectively ineffective mixing of the product.
You can find an overview of the most common stirring bars here below:
Cylindrical Magnetic Stirring Bars:
They are the most commonly used magnetic stirring bars. Due to their simple shape they can be offered at very attractive prices. Cylindrical magnetic stirring bars offer excellent centering and smooth running characteristics.
Ultra Magnetic Stirring Bars:
These magnetic stirring bars have very smooth and seamless surfaces. No substance can penetrate into their surfaces and thus, all following processes are not affected by any „carry-over“. They are mainly used for high-purity work or trace analysis.
Power Magnetic Stirring Bars:
Due to special magnetic material, their torque loads are larger than those of conventional magnetic stirring bars. Power magnetic stirring bars are mainly used for agitating viscous liquids or for bridging larger distances between the magnetic stirring machine and the magnetic stirring bar.

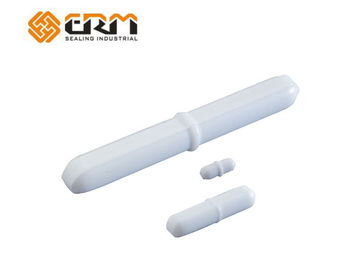

Magnetic Stirring Bars with Pivot Ring:
Their interrupted surface provides greater surface area and added turbulence. Only their pivot ring and one end of the magnetic stirring bar touch the bottom of the vessel. Therefore these magnetic stirring bars have a more steady spinning position and a better longevity.
Square Magnetic Stirring Bars:
They are particularly suitable for big vessels due to the high magnetic force. Solids are released or removed from the bottom of the vessel.
Egg-Shaped Magnetic Stirring Bars:
They are particularly suitable for round-bottom flasks. Their shape mimics that of the flasks and assures complete mixing. Those magnetic stirring bars have an egg-shaped magnetic core which assures a better force transmission than a cylindrical core.
Triangular Magnetic Stirring Bars:
Such magnets are useful for mixing reagents which resist dissolving or for avoiding any residues at the bottom of the vessels. They provide strong turbulence at relatively low speeds.
Glass Magnetic Stirring Bars:
They have a non-porous and smooth glass-coating. All following processes are not affected by any carry-over. There is an increased abrasion between glass vessels and glass stirring bars.
Star Head Magnetic Stirring Bars:
Optimum stirring in tall, narrow diameter vessels. Ideal stirring bar for cuvettes or test tubes.
Center Magnetic Stirring Bars:
These magnetic stirring bars provide better stirring action and a more stable spinning position due to the punctual position.
Tolerances of the magnetic stirring bars
The dimensions of the magnetic stirring bars are nominal dimensions which can have a tolerance of +/- 5% in length and +/- 10% in diameter.
Applications:
Cylindrical magnetic stirring bars offer excellent centering and smooth running characteristics.
Competitive Advantage:
1) ERM company is a manufacturer , specilized in PTFE material . We know PTFE ,and can help customer to produce or improve the quality .
2) We are a factory ,not a trading company , so we can offer you lower price .
3) Short lead time .
4) Reasonable price
