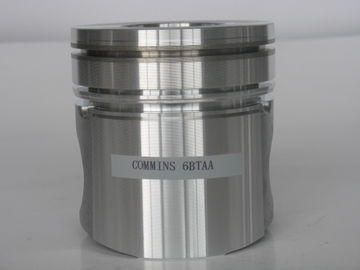

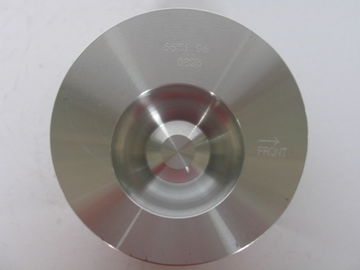

Bus Car 6BTAA Diesel Engine CUMMINS Piston 6 Cylinder , Forged 3926631

Bus Car 6BTAA Diesel Engine CUMMINS Piston 6 Cylinder , Forged 3926631
Bus Car 6BTAA Diesel Engine CUMMINS Piston 6 Cylinder , Forged 3926631 Bus Car 6BTAA Diesel Engine CUMMINS Piston 6 Cylinder , Forged 3926631

Large Image :  Bus Car 6BTAA Diesel Engine CUMMINS Piston 6 Cylinder , Forged 3926631

Product Details:
Place of Origin: Guangzhou,CHINA
Brand Name: STRONG
Certification: ISO9001,TS16949
Model Number: 6BTAA
Payment & Shipping Terms:
Minimum Order Quantity: 600PCS
Price: Negotiable
Packaging Details: Strong, neutral, customizable
Delivery Time: 30days-45days
Payment Terms: T/T,L/C,D/P
Supply Ability: 300,000pcs per month
Detailed Product Description
ENGINE MODEL: 6BTAA Cummins Engine Type: Diesel Engine
Material: Aluminium, Alloy, Graphitization Piston Type: Cooling Channel Piston, One Piece Casting Piston, Compares Piston
Product Name: Cummins Engine Piston Surface: Tin Coating, Graphite, Phosphate
High Light:

cummins diesel engine parts

,

cummins engine parts



Bus Car 6BTAA Diesel Engine CUMMINS Piston 6 Cylinder , Forged 3926631



Piston Technology



Tin Coating
Tin is coated by electro analysis or heat dipping at thickness between 0.001 and 0.003mm. Tin is characterized as soft and oil-friendly which improves running-in efficiency of piston and liner. This coating is most commonly used.

Bus Car 6BTAA Diesel Engine CUMMINS Piston 6 Cylinder , Forged 3926631 0



Piston roof anodizing
The piston roof is anodized by electro bath, forming thin layer of Al2O3 , This treatment will improve heat resistance (above 500℃), heat conductivity and anti-corrosion,  it helps prevent piston roof burn-up. The thickness is normally 0.02 to 0.05mm. If the thickness increases by 0.01mm, the heat conductivity will decrease by 25%, the roof temperature when running will be lower from 30 to 50℃. Anodizing technology and processing is normally complicated.

Bus Car 6BTAA Diesel Engine CUMMINS Piston 6 Cylinder , Forged 3926631 1



Piston roof MoS2 Spraying
The function is close to roof anodizing improving heat resistance. The MoS2 is also good at lubrication. (The bigger piston below is piston roof anodizing, the smaller one is MoS2 Spraying)

Bus Car 6BTAA Diesel Engine CUMMINS Piston 6 Cylinder , Forged 3926631 2



Graphite Sprayed at Piston Skirt/Graphite Printing
Graphite is characterized as good lubricating, which helps lubricant adhering to coating surface. The coating will reduce friction and scratching. The thickness is between 0.01 and 0.02 mm.

Bus Car 6BTAA Diesel Engine CUMMINS Piston 6 Cylinder , Forged 3926631 3



Phosphate
The phosphate is aimed to improve initial running-in performance. The phosphate layer is easy to wear off and helpful to improve running-in.

Bus Car 6BTAA Diesel Engine CUMMINS Piston 6 Cylinder , Forged 3926631 4



Ceramic Spraying
The treatment performance is similar to anodizing and heat insulation performance is better. The ideal thickness is 0.2 to 0.3mm. When running under high temperature, the ceramic is easy to crack and wear off. It is not commonly used due to high cost

Bus Car 6BTAA Diesel Engine CUMMINS Piston 6 Cylinder , Forged 3926631 5





Piston Type



Steel-insert piston

Steel-insert piston allows more uniform thermal expansion and tight fitting clearance.

Bus Car 6BTAA Diesel Engine CUMMINS Piston 6 Cylinder , Forged 3926631 6



ALFIN piston

ALFIN is inserted within the ring grooves when casting. ALFIN is made of special austenitic cast iron. It is tightly bonded metallically to piston body and counteracts the wear in the top ring groove. ALFIN pistons are commonly used in diesel engines.

Bus Car 6BTAA Diesel Engine CUMMINS Piston 6 Cylinder , Forged 3926631 7



Cooling channel piston

Cooling channel pistons effectively reduce piston body working and groove land temperature under high temperature working condition.

Bus Car 6BTAA Diesel Engine CUMMINS Piston 6 Cylinder , Forged 3926631 8



One piece casting piston

Compared to common five-pieces casting, one piece casting technology is better in efficiency and appearance, it also reduces casting flaws.



Compares piston

The sealing and guiding functions of the piston are separated from one another. The upper part is made of cast iron and the lower part is made of aluminum. The two parts is joined by bolts. The piston can perform with not only maximum strength and heat resistance, but also low wear values and optimum conditions for meeting future emission standards.



Forged piston

The forged piston allows smaller cross sections and lower piston weight. This kind of piston is installed primarily in sports car engines and heavy-duty fast-running engines.







UAP NO.

OEM NO.

ENGINE MODEL

NO.CYL

DIA. * LENGTH

RING  SIZE

PIN  SIZE

PISTON FEATURES

CUMMINS

PS-CU-001

3907163

6BT

6

102*105.4

1-3.00K
2-2.385
3-4.00

40*76

shiny
alfin

PS-CU-002

3907156

6BTA

6

102*105.40

1-3.00K
2-2.385
3-4.00

40*76

shiny
alfin

PS-CU-003

3926631

6BTAA

6

102*105.40

1-3.00K
2-2.385
3-4.00

40*83

shiny
alfin

PS-CU-004



6BTAA

6

102*105.40

1-3.00K
2-3.00K
3-4.00

40*83

shiny
2 alfin

PS-CU-005

498791400

K114

6

114







PS-CU-006

3923163

6CT 210

6

114*120.30

1-3.50K
2-3.00K
3-4.00

45*91

shiny
2 alfin

PS-CU-007

3923163

6CT 210

6

114*120.30

1-3.50K
2-3.00K
3-4.00

45*91

shiny
2 alfin

PS-CU-008

3929161

6CT

6

114*120.30

1-3.50K
2-3.00K
3-4.00

45*91

shiny
2 alfin

PS-CU-009

3800320

6CT

6

114*120.50

1-3.50K
2-3.00K
3-4.00

45*91

shiny
2 alfin

PS-CU-010

3923537

6CT 230

6

114*120.30

1-3.50K
2-3.00K
3-4.00

45*91

shiny
2 alfin

PS-CU-011

3923164

6CT 240

6

114*120.30

1-3.50K
2-3.00K
3-4.00

45*91

shiny
2 alfin

PS-CU-012

3929565

6CT 240

6

114*120.30

1-3.50K
2-3.00K
3-4.00

45*91

shiny
2 alfin

PS-CU-013

3919247

6CT

6

114







PS-CU-014

3923164

6CT

6

114







PS-CU-015

3917707

6CT  300

6

114*120.50

1-3.50K
2-3.00K
3-4.00

45*91

anodized
2 alfin

PS-CU-016

3910770

6CT

6

114







PS-CU-017

3925878

6CT 260

6

114*120.50

1-3.50K
2-3.00K
3-4.00

45*91

anodized
2 alfin

PS-CU-018



ISLE375

6

114*110.50

1-3.50K
2-3.00
3-4.00

45*91

phosphate
graphite
copper
oil gallery
alfin

PS-CU-019



6CT EUR02

6

114*110.50

1-3.50K
2-3.00K
3-4.00

45*91

phosphate
graphite
oil gallery
alfin

PS-CU-020

184800/199821
6620-31-2010
6620-31-2110
6685-31-2111

NH220-4G

6

130.175*158.80

1-3.78K
2-3.78K
3-3.78K
4-6.12K

50.78*110

tinned
alfin

PS-CU-021

6620-31-2110
6620-31-2010

NH220
A1772NP

6

130







PS-CU-022

3044448

L10

6

135







PS-CU-023

218520

NT855

6

139.4







PS-CU-024

3048808

NT855                         NH400

6

139.7*159.50

1-3.969K
2-3.175K
3-3.175K
4-4.747

50.77*119.70

shiny
2 alfin

PS-CU-025

3017348

NT855

6

139.7*159.10

1-3.969K
2-3.175K
3-3.175K
4-4.747

50.77*119.70

shiny
alfin

PS-CU-026

3017349

NT855

6

139.7*158.74

1-3.969K
2-3.175K
3-3.175K
4-4.747

50.77*119.70

shiny
alfin

PS-CU-027

3801876

NT855

6

139.7







PS-CU-028

3028685

NT855

6

139.7







PS-CU-029

215420
6711-31-2010

NT855

6

139.7*152.83

1-3.969K
2-3.175K
3-3.175K
4-4.747

50.77*119.70

shiny
alfin

PS-CU-030

3051555
3095739
3804414

NT855 / NH350

6

139.7*159.56

1-3.969K
2-3.175K
3-3.175K
4-4.747

50.77*119.70

shiny
alfin

PS-CU-031

3051556
3050366

NT855

6

139.7*159.60

1-3.969K
2-3.175K
3-3.175K
4-4.747

50.77*119.70

shiny
alfin

PS-CU-032

3051557

NT855

6

139.7*159.60

1-3.969K
2-3.175K
3-3.175K
4-4.747

50.77*119.70

shiny
alfin

PS-CU-033

FP-3051556
3025447
3024675
3095470
3023120
3804417

NH400

6

139.7







PS-CU-034

198660

NH250

6

139.7







PS-CU-035

3096680

K19

6

158.8







PS-CU-036

3096681

KT19

6

158.756*161.90

1-3.80K
2-3.76K
3-4.80

60.947*133.00

tinned
anodized
2 alfin

PS-CU-037

3096685

K19

6

158.756*163.20

1-3.80K
2-3.76K
3-4.80

60.947*133

phosphate
graphite
anodized
2 alfin

PS-CU-038

4914368

M11

6

125

split type





PS-CU-039

4059900

M11

6

125

split type











A piston is a component of reciprocating engines, reciprocating pumps, gas compressors and pneumatic cylinders, among other similar mechanisms. It is the moving component that is contained by a cylinder and is made gas-tight by piston rings. In an engine, its purpose is to transfer force from expanding gas in the cylinder to the crankshaft via a piston rod and/or connecting rod. In a pump, the function is reversed and force is transferred from the crankshaft to the piston for the purpose of compressing or ejecting the fluid in the cylinder. In some engines, the piston also acts as a valve by covering and uncovering ports in the cylinder wall.





Piston Structure



Bus Car 6BTAA Diesel Engine CUMMINS Piston 6 Cylinder , Forged 3926631 9



Bus Car 6BTAA Diesel Engine CUMMINS Piston 6 Cylinder , Forged 3926631 10
