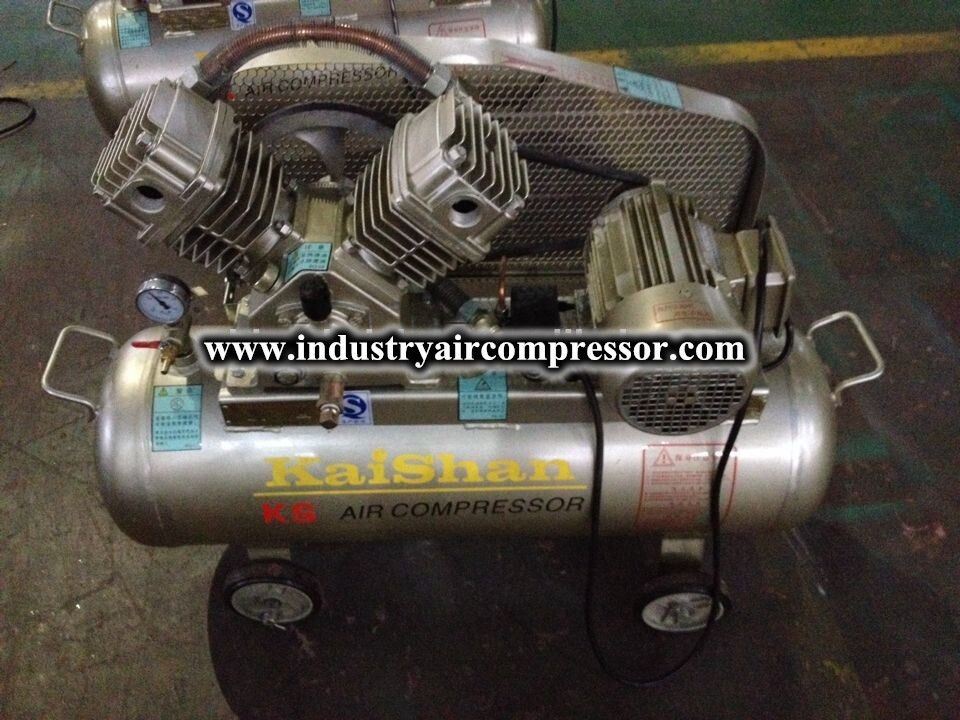

380V 3 Phase Heavy Duty industrial Piston Air Compressors KS150 1.5³ 8 bar 11kw
Parameters of mobile mini air compressor KS150:
|
Model
|
KS150
|
|
Sylinder(dia*qty)
|
110*2
|
|
Capacity (m3/min)
|
1.5
|
|
Motor power (kw)
|
11
|
|
working pressure(Mpa)
|
0.8
|
|
Air tank (m3)
|
0.31
|
|
Weight (kg)
|
465
|
|
Dimension (mm)
|
1650*650*1350
|
Application
This series air compressor widely used in pneumatic lock, pneumatic tool, tire inflation, blowing process, spray paint, sand blasting and fluidic element.
Specification
1. Durable service
2. Silent air compressor
3. Ensure low oil consumption
4. Working pressure: 2.5-4.0Mpa
5. Capacity: 0.7-4.8m3/min
6. Power: 15-40HP/11-30KW
7. ISO9001:2008 ISO14000
Advangtages
1. Small in size ,light in weight ,easy to move
2.Top material and superior technology
3. Simple structure ,high efficiency ,good performance and low price
4. Adopt the most popular design,reliable and stable ,easy for maintenance
KB sereies piston air compressor
A. Professional design by computer
B. More stability and reliability
C. Low-speed design low-noise running , long lifespan
D. Excellent air supply ability
E. Good sealing performance
F. Powerful fan cooling system
G. Special designed for heavy duty
Most attractive
1. Advanced automatic molding production line in casting indusrty imported from the USA .
2. World top-class heat treatment production line imported from Japan.
3. Adcanced Machining Center imported from Japan.
4. RS100/GS100 type direct reading quantometer with high precision imported from Germany .
Features
1. Crankshaft undergoes high-frequency hardening ,which enables it especially abrasion-proof.
2. Some relevant working unites are received precision balance,which makes it more stable.
3. Special designed is made in heat emission and air flow , which leads to low air-output
KS series is used in many fields:
|
Model
|
Cylinder
DIA×QTY
|
Outlet quantities
M3/min
|
Rev
t/min
|
Electrical power
kw
|
The best use of pressers
Mpa
|
Storage
M3
|
Weight
kg
|
Contour and size
mm
|
|
KS10
|
55×1
|
0.08
|
950
|
0.75
|
0.8
|
0.045
|
65
|
860×350×710
|
|
KS15
|
70×1
|
0.12
|
860
|
1.1
|
0.8
|
0.45
|
75
|
800×350×710
|
|
KS20
|
55×2
|
0.17
|
950
|
1.5
|
0.8
|
0.07
|
130
|
1000×450×750
|
|
KS30
|
70×2
|
0.25
|
860
|
2.2
|
0.8
|
0.07
|
150
|
1000×450×750
|
|
KS40
|
70×3
|
0.40
|
860
|
3.0
|
0.8
|
0.175
|
230
|
1500×520×1050
|
|
KS55
|
70×3
|
0.55
|
1100
|
4.0
|
0.8
|
0.175
|
280
|
1500×520×1050
|
|
KS75
|
100×2
|
0.75
|
850
|
5.5
|
0.8
|
0.248
|
305
|
1650×580×1150
|
|
KS100
|
100×3
|
1.0
|
850
|
7.5
|
0.8
|
0.248
|
340
|
1650×600×1200
|
|
KS150
|
110×3
|
1.5
|
840
|
11
|
0.8
|
0.31
|
465
|
1650×650×1350
|
|
KS200
|
125×3
|
2.0
|
900
|
15
|
0.8
|
0.41
|
580
|
1850×800×1500
|
|
KS240
|
125×3
|
2.4
|
960
|
15
|
0.8
|
0.5
|
650
|
1900×880×1600
|
|
KSH20
|
LP 70×2
HP 55×1
|
0.13
|
470
|
1.5
|
1.25
|
0.175
|
230
|
1500×520×1050
|
|
KSH30
|
LP 70×2
HP 55×1
|
0.21
|
720
|
2.2
|
1.25
|
0.175
|
260
|
1500×520×1050
|
|
KSH40
|
LP 70×2
HP 55×1
|
0.30
|
980
|
3.0
|
1.25
|
0.175
|
290
|
1500×520×1050
|
|
KSH55
|
LP 70×2
HP 55×1
|
0.45
|
1100
|
4.0
|
1.25
|
0.175
|
300
|
1500×520×1050
|
|
KSH75
|
LP 100×2
HP 80×1
|
0.60
|
680
|
5.5
|
1.25
|
0.248
|
320
|
1650×600×1200
|
|
KSH100
|
LP 100×2
HP 80×1
|
0.80
|
880
|
7.5
|
1.25
|
0.248
|
350
|
1650×600×1200
|
|
KSH150
|
LP 125×2
HP 100×1
|
1.2
|
740
|
11
|
1.25
|
0.31
|
480
|
1650×650×1400
|
|
KSH200
|
LP 125×2
HP 100×1
|
1.70
|
750
|
15
|
1.25
|
0.41
|
600
|
1850×800×1550
|
|
KSH240
|
LP 125×2
HP 100×1
|
2.1
|
840
|
15
|
1.25
|
0.50
|
620
|
1850×800×1600
|
The Other Main Kaishan Air Compressors:
1) Screw Air Compressors ( Air delivery:0.8m³/min -72m³/min;Work pressure:8-13Bar;Power:7.5Kw-400kw)
2) Mining Air Compressors(Air delivery:1.8m³/min-13m³/min ;Work pressure:5-7Bar;Power 11Kw-108Kw
3) Diesel Driven Portable Screw Air Compressors (Air delivery:6m³/min-1377m³ ,Work pressure:7-35Bar )
4) Motor Powered Portable Screw Air Compressors -350CFM – 910CFM
5) Explosion Proof Air Compressors - 30HP-120HP (22kw-90kw)
6) Diesel Driven Piston Small Air Compressors -15HP-25HP (11kw-18.5kw)
