High quality, Best service,Reasonable price.
Product Details:
Payment & Shipping Terms:
|
Producnt Name: | Dielectric Ptfe | Application: | Electric Wire Bundle ... |
---|---|---|---|
Feature: | Wear-resistant Rub | Property: | Corrosion Resistance |
Filled: | Graphite ... | Processing: | Machine Or By Mold |
High Light: | High Temperature Ptfe,ptfe heat resistance |

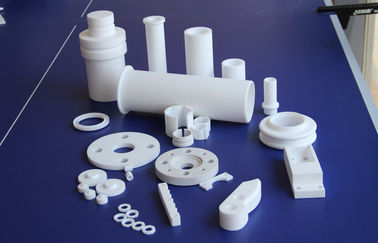

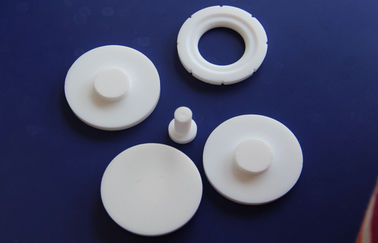

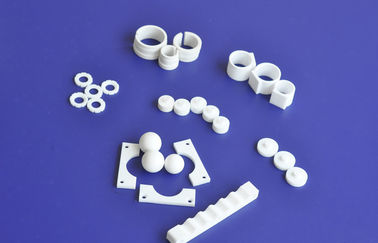

PTFE special articles machining main Features:
PTFE machining is made from PTFE profile (Rod, sheet, sleeve etc.) by a precision processing machine. The precision machining parts can meet different technical requirements in various industrial sectors, such as:
- Electric wire bundle and cable sheathing in airplane engine;
- Abnormal shape profile by extrusion;
- "Lip" type piston seal ring in hydrazine tank;
- Piston ring of actuate mechanism in aircraft fuel tank;
- Identification flexible sleeve;
- Bush used in airplane engine.
Quick detail
1.high resistance, low temperature resistance
2.Wear-resistant rub
3.anti-corrosion
Property
We supply special compounds filled ptfe products in order meet specific applications requirments according to end use. ie. Glass fiber ,Carbon fiber ,MoS2 ,Graphite , Bronze , Pigmen
Glass Fiber: |
Increases compressive strength, rigidity and wear. |
Carbon: |
Increases compressive strength, hardness, wear, and load properties. |
Graphite: |
Reduces coefficient of friction |
Molybdenum Disulfide: |
Increases hardness, stiffness, and wear |
Bronze: |
Increases hardness and wear resistance |
Product No. | Filled compound and content by weight | Tension strength MPa min | Ultimate strength% min | Compresive strength MPa min |
1 | 20% glass fiber | 10 | 120 | 16 |
2 | 25% glass fiber | 10 | 100 | 16 |
3 | 20% glass fiber graphile | 10 | 120 | 16 |
4 | 60% bronze | 10 | 80 | 20 |
5 | 15% carbon fiber | 11 | 130 | 16 |
6 | 24% bronze 12%glass fiber 6% graphite | 9 | 100 | 16 |
7 | 15%glass fiber 105polyikmide 5% graphite | 10 | 120 | 16.7 |
PTFE machining Specification
1. Material: PTFE
2. Color: Whtie, or any other
3. Working temperature: -180~260 degree (with/without CF/GF filled)
4. Processing: Machine or by mold
5. Sizes: As requirement
We can produce any special articles, only send us your size and drawing, then we can produce samples for you.
Application
Widely used in petrochemical, instrument, space, chemical, electric, cement metallurgy industries.
