PTFE Seal , Spring Energized Teflon Seal , Teflon Rotary Seal , PTFE Static Seal

PTFE Seal , Spring Energized Teflon Seal , Teflon Rotary Seal , PTFE Static Seal
PTFE Seal , Spring Energized Teflon Seal , Teflon Rotary Seal , PTFE Static Seal

Large Image :  PTFE Seal , Spring Energized Teflon Seal , Teflon Rotary Seal , PTFE Static Seal

Product Details:
Place of Origin: CHINA
Brand Name: ERM
Model Number: PTFE Ball Valve Seats
Payment & Shipping Terms:
Minimum Order Quantity: 100 pcs
Packaging Details: Poly bag
Delivery Time: 15 days
Payment Terms: T/T
Supply Ability: 5000pcs/day
Contact Now
Detailed Product Description
High Light:

expanded ptfe gasket

,

custom rubber gaskets

Spring Energized PTFE Seal ,Variseal, PTFE seal ,PTFE gasket ,PTFE ring

Spring energized PTFE seal  which is also called  Variseal

PTFE Seal , Spring Energized Teflon Seal , Teflon Rotary Seal , PTFE Static Seal 0PTFE Seal , Spring Energized Teflon Seal , Teflon Rotary Seal , PTFE Static Seal 1

Product description

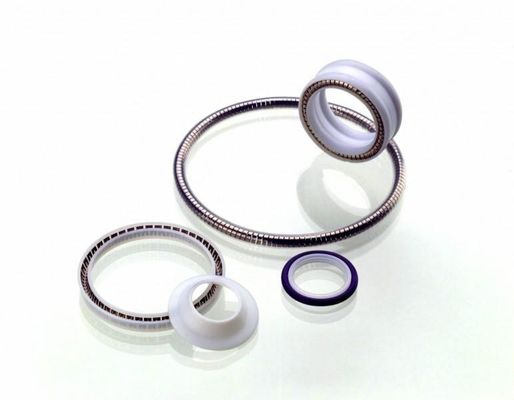

The ERM  spring energized seal is a spring-actuated, pressure-assisted sealing device consisting of a PTFE(or other polymer) jacket partially encapsulating a stainless steel spring energizer.

Material
Stainless steel spring
PTFE+bronze(brown, green); PTFE+glass(white, blue); PTFE+carbon(black); Virgin PTFE(white), etc.
Other special material is also available.

Spring style
U shaped spring(Type 400)
Round wire spring (Type APS)
O shaped spring (Type 103)

Groove style
Standard Heel Groove.
Extended Heel Groove.
Flanged Heel Groove.

Radial Seals in Static Service.
Radial Seals in Reciprocating Motion.
Inside face Seals in Static and rotary Service.
Outside face Seals in Static and rotary Service

Application
Aircraft, aerospace
Medical instrumentation
Liquid chromatography
Semicoductor manufacturing equipment
Petroleum and chemical process equipment
Pumps, valves. Compressors and mechanical seals

Both imperial and metric sizes are available on all styles. Customized service is always welcome.

Name Spring energized ptfe seals
Sliding speed[m/s] 15
Temperature [° C] -40...+260
For specific applications beyond indicated range, please enquire.
Pressure Pr: N/mm² (Max) 45
Medium Virtually all fluids, chemicals and gases
Material Virgin PTFE, PTFE+carbon, PTFE+glass fiber, PTFE+bronze, PTFE+polyester, PEEK etc. Other special material is also available.
Color coffee, white, black, blue, beige
Type of spring V-spring, Helical Spring, Slanted Coil Spring
Size Supply standard and non-standard size
Advantages 1. Resistant to most fluids and chemicals
2. Low coefficients of friction
3. Stick-slip-free operating for precise control
4. High abrasion resistance and dimensional stability
5. Can handle rapid changes in temperature
6. No contamination in contact with foodstuffs. pharmaceutical and medicinal fluids.
7. High temperature range
8. Sterilisable
9. Unlimited shelf life.
Application Valves
Pumps
Separators
Actuators
Dosing devices



Advantage


1) we use virgin PTFE or filled PTFE . Very good quality

2) all these teflon ball valve seat produced by auto machine . We can delivery fast and low human cost .

That is why we can offer customer good quality and low price .





Advantage of our products:



1.   Professional manufacture.

2.   Implement strict quality test & control procedure.

3.   High quality & Best price.

4.   Good after-sale service.

5.   Fast delivery time.





Our Service:



We believe our products will satisfy you.

Our good quality, excellent service and competitive prices are your best selection.

Thanks for visiting our website!!!

If you have any interest, please feel free to contact us!




We can offer best quality seal and compertitive price .



1) No tooling cost .  If your oil seal’s quantity can be reached our MOQ quantity , I can develop new molds for you without mold cost

2)Good quality . We can copy your seal ,or design new seal for you . We choose best best material and inspect strictly.

3)Short lead time . We delivery the goods in short time.
