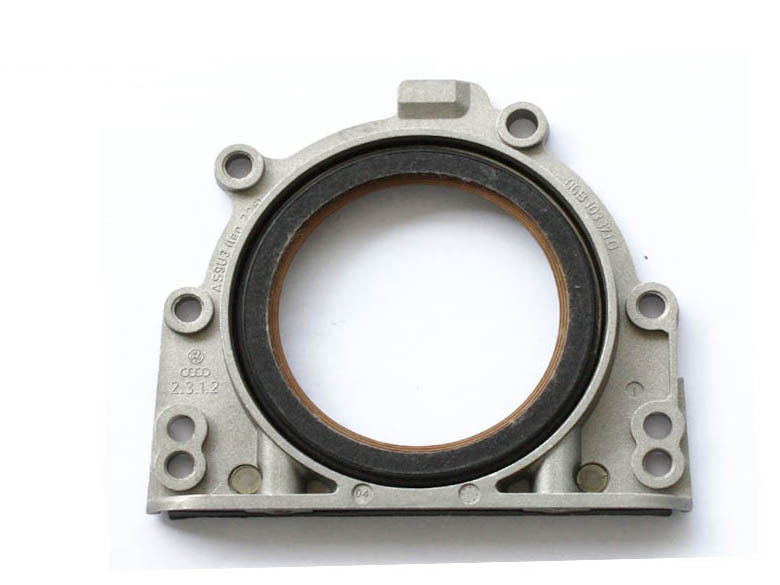

PTFE Shaft Crankshaft Oil Seal High Performance For Engine OEM 06B103171D

PTFE Shaft Crankshaft Oil Seal High Performance For Engine OEM 06B103171D

Quick Detail:

Crankshaft flanges oil seals for AUDI

OEM:06B 103 171 D

Material : PPS /PTFE/ ACM

Description:

Our plastic crankshaft flanges are used wherever car and truck crankshafts have to be sealed dynamically at both ends. The fully integrated components consist of dynamic and static seal, transmitter wheel and a sensor for engine control. The plastic crankshaft flanges have been successfully tried and tested in practical use in Europe, America and Asia.

We use good platic material .

PPS filled Glass fibre of flange is stronge enough to replace the iron  .

PTFE filled Moly is very good of wear resistant and long using life .

Applications:

It is used for Engine crankshaft of  AUDI

Competitive Advantage:

1. Combines multiple components into one unit, saving on installation time and cost while avoiding installation errors
2. Reduced inventory due to reduced number of components
3. 50% reduction in leak paths
4. T-joint static gasket feature improves static sealing
5. Weight reduction of up to 30% compared to assembled die cast retainer
6. Total system development and responsibility at ERM to ensure compatibility between sensor and trigger wheel

For the optional sensor system:

7. Signal to provide crankshaft position and rotational speed
8. Magnetic trigger wheel with high accuracy and reduced angular errors for precise signal to engine management systems
9. Sensor outside crankcase, thus no cable sealing problems and easy replacement
10. Improved system accuracy by performing timing at the flywheel location (high mass flywheel and best rotational “smoothness”)

Recommend other flange oil seal for FORD

A1660100014,A1660110932,1660100014, 6110100114 ,6040100114

We can offer best quality seal and compertitive price .

1) No tooling cost .  If your oil seal’s quantity can be reached our MOQ quantity , I can develop new molds for you without mold cost

2)Good quality . We can copy your seal ,or design new seal for you . We choose best best material and inspect strictly.

3)Short lead time . We delivery the goods in short time.
