High quality, Best service,Reasonable price.
Payment & Shipping Terms:
|Apparent Density(min):||2.10-2.30g/cm3||Filling Material:||Glass,Carbon, Graphite,bronze|
|Tensile Strength(min):||30Mpa||Crack Elongation(min):||150%|

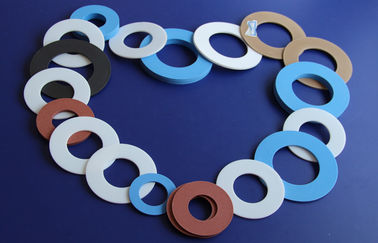

Color ptfe spacer,

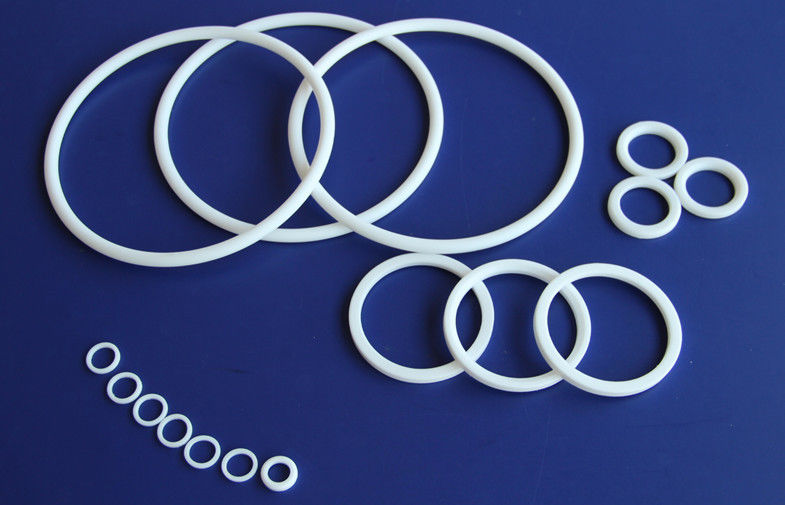

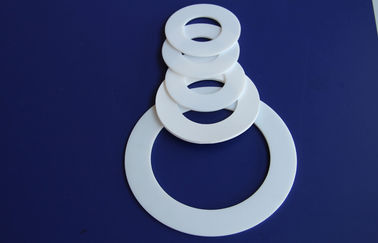

Pure Ptfe Teflon Gasket , Heat Resistant Ptfe Teflon Flat Washer
1.Glass,Carbon, graphite,bronze can be filled
PTFE gasket has strong corrosion resistance and friction-resistance,By adding filler such as glass fiber,carbon fiber,copper powder,graphite,asbestos,MOS2,AL2O3,carbon powder,ceramic fiber,metal powder,polyamide,PS,the hardness,compression strength and abrasion resistance of the products is improved ,in addition,it will have good heat conductivity and low heat expansion coefficient.
1.PTFE gasket is manufactured by molding method with suspended PTFE resin.
2.PTFE compared with other plastics, has superior properties against chemicals and temperature
3. Excellent properties, PTFE has a wide application as a sealing material.
4.it will take 5-8days to finished the sample .at that time we will show the sample picture to you first .
5.Now molds can be made according to customers requirements
|outside diameter/inside diameter × height(mm)||outside diameter/inside diameter × height(mm)||outside diameter/inside diameter × height(mm)||outside diameter/inside diameter × height(mm)|
|12.5/8.5 × 2||28/24 × 2||43/27 × 2||71/59 × 2|
|20/14 × 2||34/28 × 1.5||52/41.5 × 2||90/80 × 2|
|26/605 × 3||42/34 × 2||70/60 × 2.5||150/140 × 2.5|
|155/135 × 2||164/137 × 5||219/191 × 3||250/220 × 2|
Increases compressive strength, rigidity and wear.
Increases compressive strength, hardness, wear, and load properties.
Reduces coefficient of friction
Increases hardness, stiffness, and wear
Increases hardness and wear resistance
|Ultimate elongation (min)||%||300|
|Product No.||Filled compound and content by weight||Tension strength MPa min||Ultimate strength% min||Compresive strength MPa min|
|1||20% glass fiber||10||120||16|
|2||25% glass fiber||10||100||16|
|3||20% glass fiber graphile||10||120||16|
|5||15% carbon fiber||11||130||16|
|6||24% bronze 12%glass fiber 6% graphite||9||100||16|
|7||15%glass fiber 105polyikmide 5% graphite||10||120||16.7|
Used in the chemicals, solvents, corrosives, gases, water,steam, ammonia, air, oils, paper stock, liquor fields.
The raw material comes from top quality suppliers
