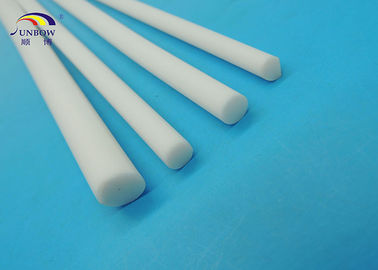

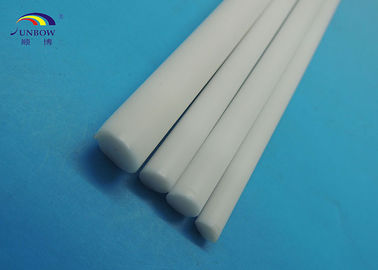

Customized Moulded Dielectric PTFE Products Teflon Rod with ISO9001 Certification

China Customized Moulded Dielectric PTFE Products Teflon Rod with ISO9001 Certification supplier
Customized Moulded Dielectric PTFE Products Teflon Rod with ISO9001 Certification supplier Customized Moulded Dielectric PTFE Products Teflon Rod with ISO9001 Certification supplier Customized Moulded Dielectric PTFE Products Teflon Rod with ISO9001 Certification supplier Customized Moulded Dielectric PTFE Products Teflon Rod with ISO9001 Certification supplier

Large Image :  Customized Moulded Dielectric PTFE Products Teflon Rod with ISO9001 Certification

Product Details:

Place of Origin: CHINA
Brand Name: SUNBOW
Certification: ROHS, REACH, UL
Model Number: SB-PTFE-ROD

Payment & Shipping Terms:

Minimum Order Quantity: 100M
Price: USD$0.1~$5.0/M
Packaging Details: Sunbow's standard package
Delivery Time: 5~8 work days
Payment Terms: Western Union, T/T, L/C
Supply Ability: 30,000M/day
Contact Now
Detailed Product Description
Material: PTFE Working Temperature: -80~+260 Degree C
Color: White And Black UL Number: E360625
Size: 4.0mm To 300mm Breakdown Voltage: 45kv/mm
Shore Hardness: 59~63A Tensile Strength: >25MPA
Melting Point: 327 Degree C Arc Resistance: >300
Relative Density: 2.14 ~2.20 Oxygen Index: >90

Moulded dielectric, non-ageing, airproof ptfe teflon rod with ISO9001 certification



Quick Detail:

100mm PTFE extruded rods

1.-Size:4mm-300mm

2.-Color: White or Colorful

3.-Filled carbon, graphite and glass fiber



Customized Moulded Dielectric PTFE Products Teflon Rod with ISO9001 Certification

Description:

PTFE has a wide range of practicable temperature from 180%°C - +260°C and a wax-like surface to which anything hardly sticks. PTFE has the lowest coefficient of friction of all known solid materials. It has the best electrical properties of all plastics.





Specifications:

There are two kinds of PTFE rods to offer. One is manufactured by Paste extruding method in the diameter from 1 to 10mm and the other Is made by ram extruding method is the diameter from 10 to 50mm; rods over the diameter 50mm are manufactured by moulding Sizes Availabe:


1. Extruded Rod Min. Diameter= 1mm, Max. Diameter= 150mm,
Length= normal 1 m, or according to customer's request
2. Moulded Rod Min. Diameter= 5mm, Max. Diameter=500mm,
Length: Max. 1 m, or according to customer's request

3.Size can be made based on customers' detailed requirement.





Main Features:

  1. Strength (high strength-to-weight ratio)
  2. Chemical inertness of this PTFE teflon oil seal is good
  3. Biocompatibility
  4. High thermal resistance
  5. High chemical resistance in harsh environments
  6. Low flammability
  7. Low coefficient of friction
  8. This PTFE teflon oil seal has low dielectric constant
  9. Low water adsorption
  10. Good weathering properties



PTFE resin,filled with some filling stuff,can prolong the life of products and strengthen the performance,eg:Graphite,Carbon ,Glass fiber ,bronze



Glass Fiber:

Increases compressive strength, rigidity and wear.
Reduces creep and cold flow
Minimal effect on chemical and electrical properties

Carbon:

Increases compressive strength, hardness, wear, and load properties.
Good chemical resistance
Various types and amounts of carbon can be added to alter conductivity

Graphite:

Reduces coefficient of friction
Reduces initial wear
Increases strength

Molybdenum Disulfide:

Increases hardness, stiffness, and wear
Minimal effect on chemical and electrical properties

Bronze:

Increases hardness and wear resistance
Increases dimensional stability and compressive strength
Not suitable for corrosive or electrical applications



Advantages

1. Strength (high strength-to-weight ratio)
2. Chemical inertness of this PTFE teflon oil seal is good
3. Biocompatibility
4. High thermal resistance
5. High chemical resistance in harsh environments
6. Low flammability
7. Low coefficient of friction
8. This PTFE teflon oil seal has low dielectric constant
9. Low water adsorption
10.Good weathering properties
