OEM / ODM Flat Ptfe Teflon Gaskets With Good Sealing Performance

OEM / ODM Flat Ptfe Teflon Gaskets With Good Sealing Performance
OEM / ODM Flat Ptfe Teflon Gaskets With Good Sealing Performance OEM / ODM Flat Ptfe Teflon Gaskets With Good Sealing Performance OEM / ODM Flat Ptfe Teflon Gaskets With Good Sealing Performance

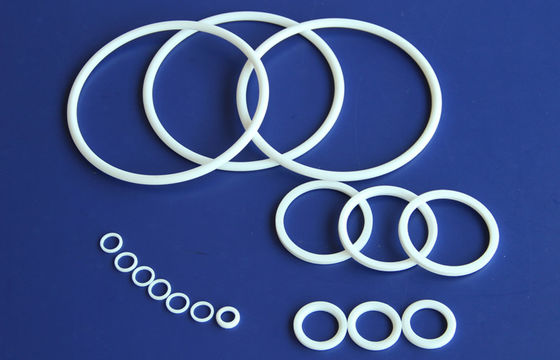

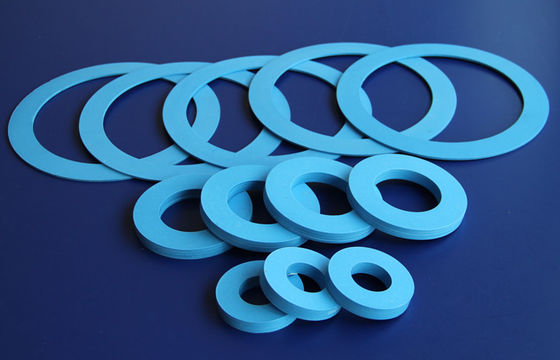

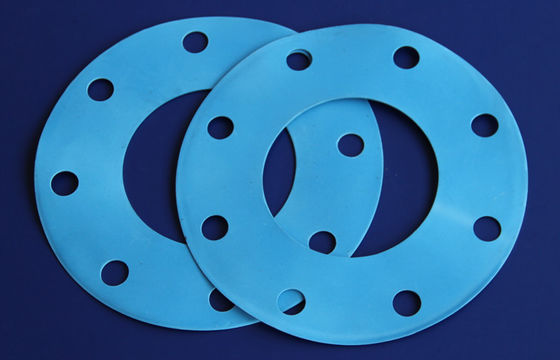

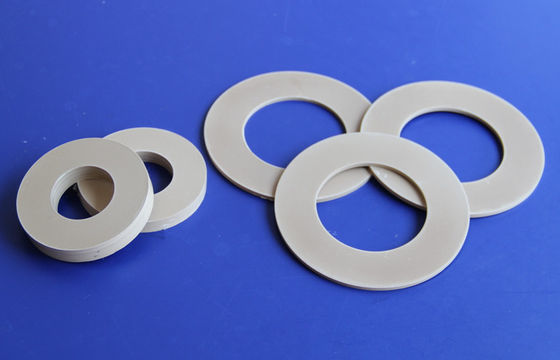

Large Image :  OEM / ODM Flat Ptfe Teflon Gaskets With Good Sealing Performance

Product Details:
Place of Origin: China
Brand Name: WXXJ
Certification: ISO 9001,ROHS
Model Number: wxxj-gasket-021
Payment & Shipping Terms:
Minimum Order Quantity: 1 pc
Price: FOB USD 7-11Kilogram/Based on negotiation
Packaging Details: Packing by Carton/Wooden Cases
Delivery Time: Normally 15-30 days
Payment Terms: T/T, L/C, D/A, D/P, Western Union
Supply Ability: 15 Tons/Month
Detailed Product Description
Yield Strength: 23MPa Density: 2.2-2.3g/m3
Coefficient Of Friction: <0.10 Tensile Strength (min): 30MPa
Material: PTFE Package: Carton Box/ Wooden Case
High Light:

Color ptfe spacer

,

door gasket machine

OEM / ODM Flat Ptfe Teflon Gaskets With Good Sealing Performance





Quick Detail:



1. OD: 3mm ~ 3000mm
2. Density: 2.1 ~ 2.3 g/cm3
3. Temp: -180
°C ~ + 260°C
4. Low frictional

5. High temperature resistance

6. Low temperature resistance

7. Chemical corrosive resistance

8. Good sealing

9.Now molds can be made according to customers requirements.





Description:



PTFE Gaskets have many kinds of application methods, it is widely used in petroleum, chemical, electric and steel industry. Applicable medium includes water, oil, acid solution, alkali solution and almost all chemical materials.





Specification:



ITEM Specification
Standard Gasket ASME B16.21
EN1514-1
JIS B2404
GBT 9126
Additional Gasket Available on customer' s request
Diameter ≤3000mm
Thickness  0.1-10mm






Filler:



Glass Fiber:

Increases compressive strength, rigidity and wear.
Reduces creep and cold flow
Minimal effect on chemical and electrical properties

Carbon:

Increases compressive strength, hardness, wear, and load properties.
Good chemical resistance
Various types and amounts of carbon can be added to alter conductivity

Graphite:

Reduces coefficient of friction
Reduces initial wear
Increases strength

Molybdenum Disulfide:

Increases hardness, stiffness, and wear
Minimal effect on chemical and electrical properties

Bronze:

Increases hardness and wear resistance
Increases dimensional stability and compressive strength
Not suitable for corrosive or electrical applications





Technical data:



Properties

Unit

Result

Apparent density

g/cm3

2.10-2.30

Tensile strength (min)

MPa

15

Ultimate elongation (min)

%

150



Product   No. Filled  compound  and content  by weight Tension  strength MPa  min Ultimate  strength%  min Compresive  strength MPa  min
1 20%   glass   fiber 10 120 16
2 25%   glass   fiber 10 100 16
3 20%   glass   fiber      graphile 10 120 16
4 60%   bronze 10 80 20
5 15%   carbon   fiber 11 130 16
6 24%   bronze  12%glass  fiber   6%  graphite 9 100 16
7 15%glass  fiber   105polyikmide   5% graphite 10 120 16.7




The raw material comes from top quality supplier:

 OEM / ODM Flat Ptfe Teflon Gaskets With Good Sealing Performance 0





Production Processing:



OEM / ODM Flat Ptfe Teflon Gaskets With Good Sealing Performance 1





Quality Assurance:



OEM / ODM Flat Ptfe Teflon Gaskets With Good Sealing Performance 2







Package:



OEM / ODM Flat Ptfe Teflon Gaskets With Good Sealing Performance 3





Application:



OEM / ODM Flat Ptfe Teflon Gaskets With Good Sealing Performance 4
