Anti Aging Write Flange Reinforced Ptfe Teflon Gasket Graphite Bronze Filled

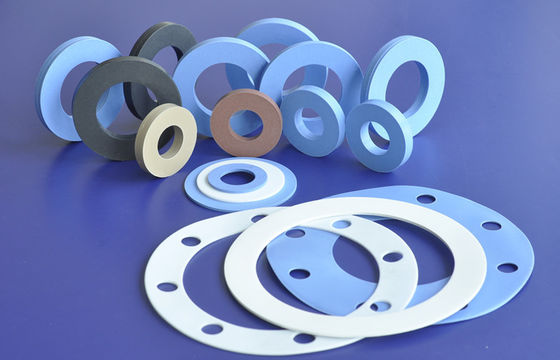

Large Image : Anti Aging Write Flange Reinforced Ptfe Teflon Gasket Graphite Bronze Filled

Product Details:

Place of Origin:	China
Brand Name:	WXXJ
Certification:	ISO 9001,ROHS
Model Number:	wxxj-gasket-031

Payment & Shipping Terms:

Minimum Order Quantity:	1 pc
Price:	FOB USD 7-11Kilogram/Based on negotiation
Packaging Details:	Packing by Carton/Wooden Cases
Delivery Time:	Normally 15-30 days
Payment Terms:	T/T, L/C, D/A, D/P, Western Union
Supply Ability:	15 Tons/Month

Contact Now

Detailed Product Description

Material:	PTFE	Color:	White Color Colorful
Filling:	Glass Fiber,pigment, Graphite,brozen, Carbon	Density:	2.1~2.3g/cm3
Temperature Resistance:	-180~260°C	Package:	Carton Box/ Wooden Case
High Light:	ptfe spacer , door gasket machine

Anti Aging Write Flange Reinforced Ptfe Teflon Gasket Graphite Bronze Filled

High Abrasion Resistant Good Sealing Ptfe Teflon Gasket Virgin and Colorful

Quick Detail:

1. OD: 3mm ~ 3000mm
2. Density: 2.1 ~ 2.3 g/cm3
3. Temp: -180°C ~ + 260°C
4. Low frictional

5. High temperature resistance

6. Low temperature resistance

7. Chemical corrosive resistance

8. Good sealing

9.Now molds can be made according to customers requirements.

Description:

PTFE Gaskets have many kinds of application methods, it is widely used in petroleum, chemical, electric and steel industry. Applicable medium includes water, oil, acid solution, alkali solution and almost all chemical materials.

Specification:

ITEM	Specification
Standard Gasket	ASME B16.21
	EN1514-1
	JIS B2404
	GBT 9126
Additional Gasket	Available on customer' s request
Diameter	≤3000mm
Thickness	0.1-10mm

Filler:

Glass Fiber:	Increases compressive strength, rigidity and wear. Reduces creep and cold flow Minimal effect on chemical and electrical properties
Carbon:	Increases compressive strength, hardness, wear, and load properties. Good chemical resistance Various types and amounts of carbon can be added to alter conductivity
Graphite:	Reduces coefficient of friction Reduces initial wear Increases strength
Molybdenum Disulfide:	Increases hardness, stiffness, and wear Minimal effect on chemical and electrical properties
Bronze:	Increases hardness and wear resistance Increases dimensional stability and compressive strength Not suitable for corrosive or electrical applications

Technical data:

Properties	Unit	Result
Apparent density	g/cm3	2.10-2.30
Tensile strength (min)	MPa	15
Ultimate elongation (min)	%	150

Product No.	Filled compound and content by weight	Tension strength MPa min	Ultimate strength% min	Compresive strength MPa min
1	20% glass fiber	10	120	16
2	25% glass fiber	10	100	16
3	20% glass fiber graphile	10	120	16
4	60% bronze	10	80	20
5	15% carbon fiber	11	130	16
6	24% bronze 12%glass fiber 6% graphite	9	100	16
7	15%glass fiber 105polyikmide 5% graphite	10	120	16.7
