1.Introduction of Product

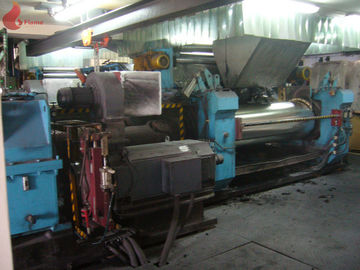

Electric EVA PVC Rubber Plastic Mixer 660mm×2030mm Open mill Equipment With Oil Sealed Type
|
Name
|
Plastic And Rubber Mixing Mill
|
Heating Way
|
Oil Or Steam
|
|
Type
|
Open Type
|
Feature
|
It is mainly used for plasticizing, calendaring and pressing
|
|
Roller
|
Peripheral Drilled Roll Or Hollow Roller, HS68~74
|
|
Material
|
Steel Plate
|
Connect Way
|
cardan
|
|
capacity
|
1800-2500 Kg/h
|
Certificate
|
ISO, CE
|
2. Quick Detail:
For masticating and kneading natural rubber, synthetic rubber, EVA or PVC pellets with various kinds chemical material and warming the cold material which shall be supplied to the calendar, embossing calender or hot presses.
This machine is used for mixing and kneading raw rubber, synthetic rubber, thermoplastics or EVA with chemicals into even materials. The even materials can be fed to calender, hot presses or other processing machinery for making rubber or plastic products.
3. Description:
Rolls:
Manufactured from chilled cast iron, inside rolls are cooled by water or
heated by steam
Frames:
Manufactured from welded steel plates or high tensile cast iron for maximum rigidity
Bed:
One piece construction of welded steel plate or cast iron provides maximum
stability
Bushing:
1) An oil sealed type bushing, the bushing housing is manufactured from
cast iron, and the inside diameter is fitted with high lead bronze.
Designed with water circulation circuit for water cooling, reducing heat
generated between the roll neck and the bushing
2) The bearing type bushing is constructed of cast iron housing and high
strength bearing at inside diameter
Bushing lubrication:
Employs automatic circulated lubrication system
Roll gap adjustment:
1) Manual gap adjustment is standard
2) Powered gap adjustment is optional

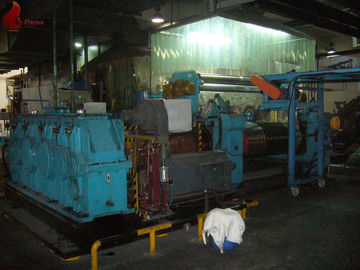

Reduction gear box:
Three-step totally enclosed gear reducer is driven by bevel gear. Gears are lubricated by self splash lubrications system
4. Applications:
1. PVC Artificial Leather;
2. PVC film
3. PVC plastic floor
4. PVC plastic sheet
5. Plastic mixer
6. Rubber mixer
5. Specifications:
|
TECHNICAL SPECIFICATIONS OF MIXING MILL
|
|
|
|
|
Type
|
XK-400
|
XK-450
|
XK-560
|
XK-610
|
XK-660
|
XK-760
|
|
Roll Diameter(mm)
|
405
|
450
|
560
|
610
|
660
|
760
|
|
Working length(mm)
|
1010
|
1200
|
1530
|
1680
|
1830
|
2130
|
|
Front Roll Linear Velocity(m/min)
|
24.93
|
27.51
|
36.24
|
42.5
|
41.98
|
52.02
|
|
Two Rolls' Speed Ratio
|
1:1.17
|
1:1.175
|
1:1.17
|
1:1.2
|
1:1.167
|
1:1.16
|
|
Max.Roll Gap(mm)
|
50
|
50
|
50
|
50
|
50
|
50
|
|
Capacity(kg)
|
25~35
|
30~50
|
50~60
|
90~120
|
140~160
|
190~220
|
|
Power(kw)
|
55
|
75
|
90
|
132
|
220~250
|
280~320
|
|
Weight(t)
|
10
|
12
|
20
|
25
|
30
|
40
|
|
|
|
|
|
|
|
|
|
Type
|
SK-400
|
SK-450
|
SK-560
|
SK-610
|
SK-660
|
SK-760
|
|
Roll Diameter(mm)
|
405
|
450
|
560
|
610
|
660
|
760
|
|
Working length(mm)
|
1010
|
1200
|
1680
|
1830
|
2130
|
2800
|
|
Front Roll Linear Velocity(m/min)
|
24.93
|
27.51
|
36.24
|
42.5
|
41.98
|
52.02
|
|
Two Rolls' Speed Ratio
|
1:1.17
|
1:1.175
|
1:1.17
|
1:1.2
|
1:1.167
|
1:1.16
|
|
Max.Roll Gap(mm)
|
50
|
50
|
50
|
50
|
50
|
50
|
|
Capacity(kg)
|
18~25
|
25~35
|
35~50
|
90~120
|
140~160
|
190~220
|
|
Power(kw)
|
55
|
55
|
75
|
90
|
132
|
185
|
|
Weight(t)
|
10
|
12
|
20
|
25
|
30
|
40
|
6. Competitive Advantage:
1.Drilled roller is better cooling;
2.Motor power-zoom is more easy to modify the gap of two rollers
3.Speedy guide baffle is more easy to clean, and disassemble the guide baffle
4.Bearing bushing is fitted with a special bearing for great precision accuracy, smooth running performance and maximum durability.
5.With the use of double extension shafts and universal coupling for transmission, the operation performance becomes more stable and the space between the two rollers can be regulated to the most extent gap.
6.Emergency Stop device can effectively decrease mechanical injury and protect the safety of
operator.
7.Service:
1. Oversea installation guide.
2. Oversea test running
3. Ovsersea worker training
4. Technical support
5. Spare parts supply
6. Technical operation support
7. Formula and processing support
8. Option

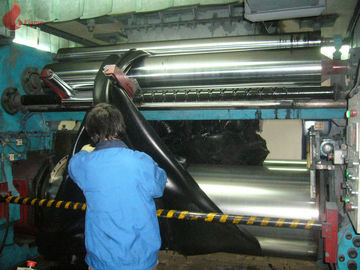

Mixing mill working principle of the equipment is the main working part two speed ranging from relative rotation of the hollow roller. When added to the two rubber roller in the roller extrusion after above at the same time under the action of friction and adhesion force, form the end of the wedge strip, Under the action of roller by the strong crush, cut and tear strip, accompanied by chemical action, So repeatedly, finally complete the new practice, thermal refining and mixing and tablet.
9. Commercial Terms
1. Payment: 30% by T/T as advance payment, balance(70%) by T/T before shipment
2. Lead Time: 60 days after receiving the advance payment
3. Transportation: container, simple package ( PE film, salver)
4.Warranty period: From the day of the use of the machine in the buyer’s factory:
(1) The mechanical Parts: 12 months
(2) The electrical Parts: 6 months
5. Installations and Commissioning
(1) Up to date commissioning has been made before shipment
(2) Overseas Commissioning and charges one or two technicians will be sent to the buyer to guide the
installation and commissioning of the equipment if the customer requests.
Customers pay the charge of our technicians.
(1) Round-trip Airplane Ticket
(2) Charges of transportation, accommodation and communication
(3) The allowance for the technicians is USD 80 per day for one person.
(4) An interpreter is needed.
6. Spare parts:
Spare parts for one year are needed for the customers, and we suggest that customers should buy the spare parts. (Fittings list will be provided.)
7. English manual, Figuration drawing, and footing drawings are provided.
