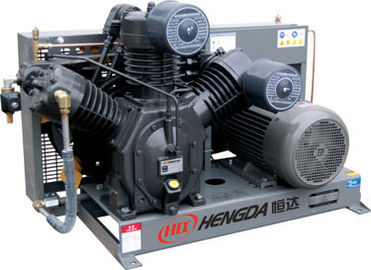

Energy Efficient 30 Bar High Pressure Piston Air Compressor Pump Low - noise 1.5 M3/min

Energy Efficient 30 Bar High Pressure Piston Air Compressor Pump Low - noise 1.5 M3/min
Energy Efficient 30 Bar High Pressure Piston Air Compressor Pump Low - noise 1.5 M3/min Energy Efficient 30 Bar High Pressure Piston Air Compressor Pump Low - noise 1.5 M3/min

Large Image :  Energy Efficient 30 Bar High Pressure Piston Air Compressor Pump Low - noise 1.5 M3/min

Product Details:
Place of Origin: China
Brand Name: StepChina
Model Number: WH-1.5/30
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: Negotiation
Packaging Details: wooden case
Delivery Time: 15 work days
Detailed Product Description
Power Source: AC Brand Name: Hengda
Model: WH-1.5/30 Compression Stage: 2
Weight: 450 Kg Diemnsion: 1470*780*885 Mm
High Light:

high pressure air compressor

,

quiet air compressor

 Energy Efficient 30 Bar High Pressure Piston Air Compressor Pump Low - noise 1.5 M3/min



Quick Detail:

Name

Air compressor

Brand Name

Hengda

Capacity

1.5 M3/Min

Pressure

30 Bar

Function

compressed air

Usage

Supply compressed air for PET bottle blowing







Applications:

1. Supply high pressure compressed air

2. High pressure compressed air for bottle blow molding.





Specifications

air compressor pump
1. Air capacity: 1.5M3/min
2. working pressure: 30bar
3. Power:18.5kw
4. Certificate: ISO/CE





Energy Efficient 30 Bar High Pressure Piston Air Compressor Pump Low - noise 1.5 M3/min 0

1. Main data





Model

Air capacity

(M3/min)

Working pressure

(Bar)

Power(Kw)

Speed(r.p.m)

Weight(Kg)

VH-0.7/30

0.7

30BAR

7.5

680

310

WH-1.0/30

1.0

11

600

430

WH-1.2/30

1.2

15

760

450

WH-1.5/30

1.5

18.5

790

520

WH-2.0/30

2.0

22

670

610

WH-2.35/30

2.35

25

760

620

2-WH-3.0/30

3.0

2*18.5

790

1150

3-WH-3.6/30

3.6

3*15

700

1580

VH-0.17/35

0.17

35BAR

2.2

660

110

VH-0.65/35

0.65

9.0

605

420

WH-1.1/35

1.1

15

900

475

WH-2.0/35

2.0

22

670

615

WH-2.2/35

2.2

25

735

600

VH-0.3/40

0.3

40BAR

5.5

500

290

WH-1.0/40

1.0

11

790

470

49SH-2.6/40

2.6

25

625

900

49SH-3.0/40

3.0

30

695

920

2-49SH-6.0/40

6.0

2*30

695

2100

4-WH-4.0/40

4.0

4*11

790

2400

6-WH-6.0/40

6.0

6*11

790

3600



2. Inspection method:

CAGI

3. Inspection standard:

- AISI

- AMS

- ANSI

- ASME

- ASTM

- AGMA

- AGMA

- NEMA

- VDI

- CAGI-NPEUROP

- MS

4. Technical characteristics:



4.1 Automatic pressure unloading system, ensure machine starting without loading.

4.2 With exhaust check valve on outlet.

4.3 Removable type inlet silencing filter, 10 micron precision.

4.4 Normal inertia flywheel, 2 root V belt drive.

4.5 Splashing lubrication to all moving Parts.

4.6 Light alloy pistons, with PTFE

4.7 Cast iron cylinder head, independent valve seat.

4.8 Automatic hoop valve piston rings, big flow, more action, high efficiency.

4.9 World famous brand rolling bearing, ensure the stable operation unit.

4.10 Enough space between the cylinder and the crankcase design, avoid friction between connecting rod, moving parts and crankcase.

4.11 With Safety Valve Between after-cooling.
