Anti-corrosion plastic flexible coupling for quick pipe connector joints Nylon made 150psi 10bar

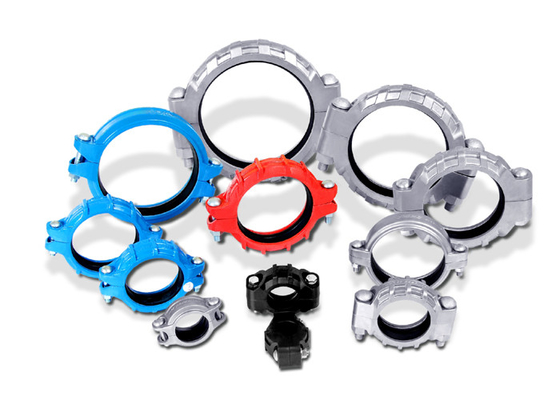

Large Image : Anti-corrosion plastic flexible coupling for quick pipe connector joints Nylon made 150psi 10bar

Product Details:

Place of Origin:	China
Brand Name:	Purescience
Certification:	ANSI/AWWA/ASTM/ANSI/NSF61
Model Number:	75R

Payment & Shipping Terms:

Minimum Order Quantity:	200 pieces
Price:	negotiable
Packaging Details:	carton and pallet
Delivery Time:	2 to 3 weeks
Supply Ability:	100000 pieces per month

Contact Now

Detailed Product Description

Product Name:	Plastic	Pressure Rating:	150 Psi
Category:	Grooved Connect	Rubber Gasket \| Seal:	EPDM
Material:	Composite Plastic ( Nylon )	Diameter:	3/4" To 12" , DN25 To DN150
High Light:	water stop valve , grooved piping system

Anti-corrosion plastic flexible coupling for quick pipe connector joints Nylon made 150psi 10bar

1. Specifications

Pressure rating: 150 psi ( 10 bar)
Size range (Diameter): DN 25 to DN150 | 1" to 6"
Operation temperature range: -50 ℃ to 150 ℃
Standards: ANSI/AWWA/ASTM/ANSI/NSF61

Data sheet

Nominal size	Pipe OD	Pressure rating	Pipe end separation	Dimensions
Nominal size	Pipe OD	Pressure rating	Pipe end separation	A	B	C
mm	mm	psi	mm	mm	mm	mm
in	in	bar	in	in	in	in
25 1	33.4 1.315	150 10.00	0-1.6 0-0.06	54 2.126	94 3.701	42 1.654
32 1.25	42.20 1.660	150 10.00	0-1.6 0-0.06	63 2.480	103 4.055	44 1.732
40 1.5	48.30 1.900	150 10.00	0-1.6 0-0.06	70 2.756	112 4.409	44 1.732
50 2	60.30 2.375	300 20.67	0-1.6 0-0.06	82 3.228	124 4.882	44 1.732
65 2.5	73.00 2.875	150 10.00	0-1.6 0-0.06	96 3.780	148 5.827	44 1.732
65	76.10 3.000	150 10.00	0-1.6 0-0.06	100 3.937	152 5.984	44 1.732
80 3	88.90 3.500	150 10.00	0-1.6 0-0.06	113 4.449	166 6.535	44 1.732
100 4	114.3 4.500	300 20.67	0-3.2 0-0.13	140 5.512	193 7.598	48 1.890
125 5	141.3 5.563	150 10.00	0-3.2 0-0.13	167 6.575	222 8.740	50 1.969
150 6	168.3 6.625	150 10.00	0-3.2 0-0.13	196 7.717	252 9.921	56 2.205

2. Description

Our flexible couplings give contractors, engineers and owners an unmatched competitive edge cutting piping system installation time, and making installations safer. These grooved pipe joints offers you with innovative solutions acrossdiverse business lines including building services, clean water and waste water, fire protection, industrial construction, maritime, mining, oil, gas and chemical, power generation, as well as custom castings.

The model 75R is designed for solving the corrosion problems which usually happen in low pressure piping systems. Our couplings are produced in good quality reinforced nylon, injection molded by high temperature. It features its high strength and toughness, perfect corrosion resistance performance. They're widely used in ultra filtration ( UF ) membrane system and other water treatment, seawater desalination equipment.

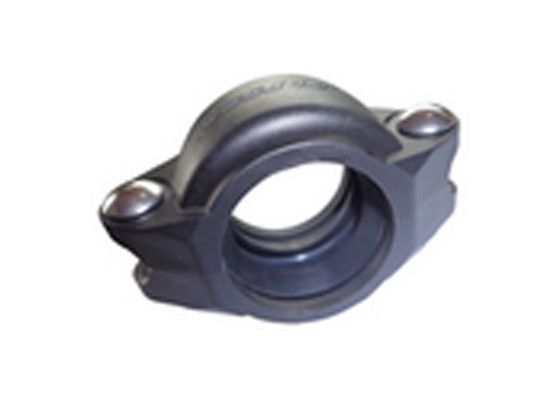

Anti-corrosion plastic flexible coupling for quick pipe connector joints Nylon made 150psi 10bar 0

Quick joints housing materials:

Nylon, other composite, plastic material upon demands.

Bolts&Nuts:

Type 304 stainless steel track bolts and nuts to ASTM F-593
Type 316 stainless steel track bolts and nuts to ASTM F-593
Type 316 stainless steel track bolts ASTM A193 B-8M with silicone bronze heavy duty nuts to ASTM B98 C65100

Rubber Gaskets or seals:

The gasket seals is C-shaped, made of standard gasket EPDM (ethylene propylene diene monomer) for cold water, hot water, rare acid, oilfree air and multiple chemical product (-50~150 ).It is not suitable for medium like petroleum

3. Applications

Clean water	Reverse osmosis \| RO system, Ultrafiltration \| UF system, seawater desalination,
Waste water	Water treatment, waste water treatment, seawater desalination, effluent treatment plant
Grooved piping	Fire protection, industrial construction, maritime, mining, oil, gas and chemical, power generation

4. Competitive advantage

AutoCAD is used to design products and optimize structures
Cast Process Design by by Castsoft CAD and CAE
Strict Manufacturing Process control
Quality Control Of The Casting Material
Metal Material Laboratory for test of compositional, metallographic & mechanical property
Perfect apperance
Strict test standard compliance to UL213 and FM1920
Strict standard for sealing gaskets production and material test.
